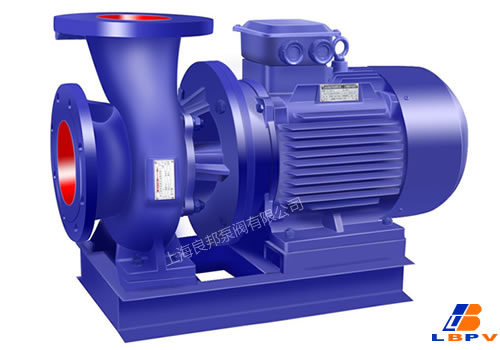

产品名称：ISW卧式管道离心泵
 |
|
|
产品概述 |
 |
|
| |
 | |
ISW型卧式离心泵根据IS型离心泵与立式泵的独特结构组合设计，并严格按照国际标准ISO2858和国家管道离心泵标准JB/T53058-93进行设计制造的高效节能产品。该泵采用国内水力模型优化设计而成。同时根据使用温度、介质等不同在ISW型基础上派生出热水泵、高温泵、化工泵、油泵等，是目前国家标准定型推广产品。 |
| |
|
产品用途 |
|
|
| |
| |
1、 ISW型管道离心泵，供输送清水及物理化学性质类似于清水的其他液体之用，适用于工业和城市给排水，高层建筑增压送水，园林灌溉，消防增压及设备配套，使用温度T：≤80℃。
2、 ISWR（WRG）型热水（高温）循环泵广泛适用于能源、冶金、化工、纺织、造纸、以及宾馆饭店等锅炉高温热水增压循环输送及城市采暖系统循环用泵，ISWR使用温度T：≤120℃、WRG使用温度T：≤240℃。
3、 ISWH型卧式化工泵，供输送不含固体颗粒，具有腐蚀性，粘度类似于水的液体，适用于石油、化工、冶金、电力、造纸、食品、制药和合成纤维等部门，使用温度T：-20℃-120℃。
4、 ISWB型卧式油泵，供输送汽油、柴油、煤油等石油产品，使用温度T：-20℃-120℃。 |
| |
|
工作条件 |
|
|
| |
| |
1、 吸入压力≤1.0Mpa，或泵系统最高工作压力≤1.6Mpa,即泵吸入口压力+泵扬程≤ 1.6Mpa、泵静压试验压力为2.5Mpa,订货时请注明系统工作压力。泵系统工作压力大于 1.6Mpa时应在订货时另行提出。以便在制造时泵的过流部件和联接部分采用铸钢材料。
2、 环境温度<40℃，相对湿度<95%。
3、 所输送介质中固体颗粒体积含量不超过单位体积的0.1%，粒度<0.2mm.
注：如使用介质为带有细小颗粒，请在订货时说明，以便采用耐磨式机械密封。 |
| |
|
型号意义 |
|
|
| |
| |
例如：ISW100-160（I）AB
ISW-卧式离心泵
100-泵进、出口公称直径（mm）
160-叶轮名义直径（mm）
I-流量分类
AB-叶轮经第一、二次切割 |
| |
|
性能参数 |
|
|
| |
| |
|
型 号 |
流量 |
扬程
(m) |
效率
(%) |
转速
(r/min) |
电机功率
(kw) |
汔蚀余量
(NPSH)r |
重量
(kg) |
|
m3/h |
L/s |
|
ISW25-110 |
2.8
4
5.2 |
0.78
1.11
1.44 |
16
15
13.5 |
34
42
41 |
2900 |
0.55 |
2.3 |
26 |
|
ISW25-125 |
2.8
4
5.2 |
0.78
1.11
1.44 |
20.6
20
18 |
28
36
35 |
2900 |
0.75 |
2.3 |
28 |
|
ISW25-125A |
2.5
3.6
4.6 |
0.69
1.0
1.28 |
17
16
14.4 |
35 |
2900 |
0.55 |
2.3 |
27 |
|
ISW25-160 |
2.8
4
5.2 |
0.78
1.11
1.44 |
33
32
30 |
24
32
33 |
2900 |
1.5 |
2.3 |
39 |
|
ISW25-160A |
2.6
3.7
4.9 |
0.12
1.03
1.36 |
29
28
26 |
31 |
2900 |
1.1 |
2.3 |
34 |
|
ISW32-100
|
4.5 |
12.5 |
12.5 |
44 |
2900 |
0.55 |
2.0 |
27 |
|
ISW32-100(I) |
4.4
6.3
8.3 |
1.22
1.75
2.32 |
13.2
12.5
11.3 |
48
54
53 |
2900 |
0.75 |
2.0 |
32 |
|
ISW32-125 |
3.5
5
6.5 |
0.97
1.39
1.8 |
22
20
18 |
40
44
42 |
2900 |
0.75 |
2.3 |
28 |
|
ISW32-125A |
3.1
4.5
5.8 |
0.86
1.25
1.61 |
17.6
16
14.4 |
43 |
2900 |
0.55 |
2.3 |
28 |
|
ISW32-160
|
6.5 |
5 |
32 |
44 |
2900 |
1.5 |
2.3 |
39 |
|
ISW32-160A
|
4 |
1.1 |
25 |
34 |
2900 |
1.1 |
2.0 |
38 |
|
ISW32-160(I) |
4.4
6.3
8.3 |
1.22
1.75
2.32 |
33.2
32
30.2 |
34
40
42 |
2900 |
2.2 |
2.0 |
4.7 |
|
ISW32-200
|
4.5 |
12.5 |
50 |
32 |
2900 |
3 |
2.0 |
55 |
|
ISW32-200(I) |
4.4
6.3
8.3 |
1.22
1.75
2.32 |
50.5
50
48 |
26
33
35 |
2900 |
4 |
2.0 |
43 |
|
ISW32-200A |
2.8
4
5.2 |
0.78
1.11
1.44 |
44.6
44
42.7 |
34
40
42 |
2900 |
2.2 |
2.0 |
74 |
|
ISW40-100 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
13.2
12.5
11.3 |
48
54
53 |
2900 |
0.55 |
2.3 |
32 |
|
ISW40-100A |
3.9
5.6
7.4 |
1.08
1.56
2.06 |
10.6
10
9 |
52 |
2900 |
0.37 |
2.3 |
32 |
|
ISW40-125 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
21
20
18 |
41
46
43 |
2900 |
1.1 |
2.3 |
34 |
|
ISW40-125A |
3.9
5.6
7.4 |
1.08
1.56
2.06 |
17.6
16
14.4 |
40
45
41 |
2900 |
0.75 |
2.3 |
33 |
|
ISW40-160 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
33
32
30 |
35
40
40 |
2900 |
2.2 |
2.3, |
47 |
|
ISW40-160A |
4.1
5.9
7.8 |
1.14
1.64
2.17 |
29
28
26.3 |
34
39
39 |
2900 |
1.5 |
2.3 |
43 |
|
ISW40-160B |
3.8
5.5
7.2 |
1.06
1.53
2.0 |
25.5
24
22.5 |
34
38
37 |
2900 |
1.1 |
2.3 |
38 |
|
ISW40-200 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
51
50
48 |
26
33
32 |
2900 |
4.0 |
2.3 |
74 |
|
ISW40-200A |
4.1
5.9
7.8 |
1.14
1.64
2.17 |
45
44
42 |
26
31
30 |
2900 |
3.0 |
2.3 |
62 |
|
ISW40-200B |
3.7
5.3
7.0 |
1.03
1.47
1.94 |
38
36
34.5 |
29 |
2900 |
2.2 |
2.3 |
52 |
|
ISW40-250 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
82
80
74 |
24
28
28 |
2900 |
7.5 |
2.3 |
105 |
|
ISW40-250A |
4.1
5.9
7.8 |
1.14
1.64
2.17 |
72
70
65 |
24
28
27 |
2900 |
5.5 |
2.3 |
98 |
|
ISW40-250B |
3.8
5.5
7.0 |
1.06
1.53
1.94 |
61.5
60
56 |
23
27
26 |
2900 |
4.0 |
2.3 |
77 |
|
ISW40-100(I) |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
13.2
12.5
11.3 |
55
62
60 |
2900 |
1.1 |
2.3 |
34 |
|
ISW40-100(I)A |
8
11
14.5 |
2.22
3.05
4.03 |
10.6
10
9 |
60 |
2900 |
0.75 |
2.3 |
32 |
|
ISW40-125(I) |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
21.2
20
17.8 |
49
58
57 |
2900 |
1.5 |
2.3 |
38 |
|
ISW40-125(I)A |
8
11
14.5 |
2.22
3.05
4, .03 |
17
16
14 |
57 |
2900 |
1.1 |
2.3 |
33 |
|
ISW40-160(I) |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
33
32
30 |
45
52
51 |
2900 |
3.0 |
2.3 |
56 |
|
ISW40-160(I)A |
8.2
11.7
15.2 |
2.28
3.25
4.22 |
29
28
26 |
44
51
50 |
2900 |
2.2 |
2.3 |
47 |
|
ISW40-160(I)B |
7.3
10.4
13.5 |
2.38
2.89
3.75 |
23
22
20.5 |
50 |
2900 |
1.5 |
2.3 |
43 |
|
ISW40-200(I) |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
51.2
50
48 |
38
46
46 |
2900 |
5.5 |
2.3 |
85 |
|
ISW40-200(I)A |
8.3
11.7
15.3 |
2.31
3.25
4.25 |
45.0
44
42 |
37
45
45 |
2900 |
4.0 |
2.3 |
75 |
|
ISW40-200(I)B |
7.5
10.6
13.8 |
2.08
2.94
3.83 |
37
36
34 |
44 |
2900 |
3 |
2.3 |
63 |
|
ISW40-250(I) |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
81.2
80
77.5 |
31
38
40 |
2900 |
11 |
2.3 |
145 |
|
ISW40-250(I)A |
8.2
11.6
15.2 |
2.28
3.22
4.22 |
71.0
70
68 |
38 |
2900 |
7.5 |
2.3 |
95 |
|
ISW40-250(I)B |
7.6
10.8
14 |
2.11
3.0
3.89 |
61.4
60
58 |
37 |
2900 |
5.5 |
2.3 |
94 |
|
ISW40-250(I)C |
7.1
10.0
13.1 |
1.97
2.78
3.64 |
53.2
52
50.4 |
36 |
2900 |
5.5 |
2.3 |
88 |
|
ISW50-100 |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
13.6
12.5
11.3 |
55
62
60 |
2900 |
1.1 |
2.3 |
36 |
|
ISW50-100A |
8
11
14.5 |
2.22
3.05
4.03 |
11
10
9 |
60 |
2900 |
0.75 |
2.3 |
35 |
|
ISW50-125 |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
21.5
20
17.8 |
49
58
57 |
2900 |
1.5 |
2.3 |
43 |
|
ISW50-125A |
8
11
14.5 |
2.22
3.05
4.03 |
17
16
14 |
57 |
2900 |
1.1 |
2.3 |
38 |
|
ISW50-160 |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
33
32
30 |
45
52
30 |
2900 |
3.0 |
2.3 |
59 |
|
ISW50-160A |
8.2
11.7
15.2 |
2.28
3.25
4.22 |
29
28
26 |
44
51
50 |
2900 |
2.2 |
2.3 |
51 |
|
ISW50-160B |
7.3
10.4
13.5 |
2.38
2.89
3.75 |
23
22
20.5 |
50 |
2900 |
1.5 |
2.3 |
47 |
|
ISW50-200 |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
52
50
48 |
38
46
46 |
2900 |
5.5 |
2.3 |
101 |
|
ISW50-200A |
8.3
11.7
15.3 |
2.31
3.25
4.25 |
45.8
44
42 |
37
45
45 |
2900 |
4.0 |
2.3 |
80 |
|
ISW50-200B |
7.5
10.6
13.8 |
2.08
2.94
3.83 |
37
36
34 |
44 |
2900 |
3 |
2.3 |
68 |
|
ISW50-250 |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
82
80
77.5 |
29
38
40 |
2900 |
11 |
2.3 |
160 |
|
ISW50-250A |
8.2
11.6
15.2 |
2.28
3.22
4.22 |
71.5
70
68 |
38 |
2900 |
7.5 |
2.3 |
115 |
|
ISW50-250B |
7.6
10.8
14 |
2.11
3.0
3.89 |
61.4
60
58 |
37 |
2900 |
5.5 |
2.3 |
, 114 |
|
ISW50-250C |
7.1
10.0
13.1 |
1.97
2.78
3.64 |
53.2
52
50.4 |
36 |
2900 |
5.5 |
2.3 |
108 |
|
ISW50-100(I) |
17.5
25
32.5 |
4.86
6.94
9.03 |
13.7
12.5
10.5 |
67
69
69 |
2900 |
1.5 |
2.5 |
41 |
|
ISW50-100(I)A |
15.6
22.3
29 |
4.3
6.19
8.1 |
11
10
8.4 |
65
67
68 |
2900 |
1.1 |
2.5 |
36 |
|
ISW50-125(I) |
17.5
25
32.5 |
4.86
6.94
9.03 |
21.5
20
18 |
60
68
67 |
2900 |
3.0 |
2.5 |
56 |
|
ISW50-125(I)A |
15.6
22.3
29 |
4.33
6.19
8.1 |
17
16
13.6 |
58
66
65 |
2900 |
2.2 |
2.5 |
48 |
|
型 号 |
流量 |
扬程
(m) |
效率
(%) |
转速
(r/min) |
电机功率
(kw) |
汔蚀余量
(NPSH)r |
重量
(kg) |
|
m3/h |
L/s |
|
ISW50-160(I) |
17.5
25
32.5 |
4.68
6.94
9.03 |
34.4
32
27.5 |
54
63
60 |
2900 |
4.0 |
2.5 |
72 |
|
ISW50-160(I)A |
16.4
23.4
30.4 |
4.56
6.5
8.44 |
30
28
24 |
54
62
59 |
2900 |
3.0 |
2.5 |
71 |
|
ISW50-160(I)B |
15.0
21.6
28 |
4.17
6.0
7.78 |
26
24
20.6 |
58 |
2900 |
2.2 |
2.5 |
59 |
|
ISW50-200(I) |
17.5
25
32.5 |
4.86
6.94
9.03 |
52.7
50
45.5 |
49
58
59 |
2900 |
7.5 |
2.5 |
108 |
|
ISW50-200(I)A |
16.4
23.5
30.5 |
4.56
6.53
8.47 |
46.4
44
40 |
48
57
58 |
2900 |
5.5 |
2.5 |
107 |
|
ISW50-200(I)B |
15.2
21.8
28.3 |
4.22
6.06
7.86 |
40
38
34.5 |
55 |
2900 |
4 |
2.5 |
100 |
|
ISW50-250(I) |
17.5
25
32.5 |
4.86
6.94
9.03 |
82
80
76.5 |
39
50
52 |
2900 |
15.0 |
2.5 |
175 |
|
ISW50-250(I)A |
16.4
23.4
30.5 |
4.56
6.5
8.47 |
71.5
70
67 |
39
50
52 |
2900 |
11.0 |
2.5 |
165 |
|
ISW50-250(I)B |
15
21.6
28 |
4.17
6.0
7.78 |
61
60
57.4 |
38
49
54 |
2900 |
7.5 |
2.5 |
165 |
|
ISW50-315(I) |
17.5
25
32.5 |
4.86
6.94
9.03 |
128
125
122 |
30
40
44 |
2900 |
30.0 |
2.5 |
310 |
|
ISW50-315(I)A |
16.6
23.7
31 |
4.61
6.58
8.6 |
115
113
110 |
30
40
44 |
2900 |
22 |
2.5 |
245 |
|
ISW50-315(I)B |
15.7
22.5
29.2 |
4.36
6.25
8.0 |
103
101
98 |
39 |
2900 |
18.5 |
2.5 |
215 |
|
ISW50-315(I)C |
14.4
20.6
26.8 |
4.0
5.72
7.44 |
86
85
83 |
38 |
2900 |
15.0 |
2.5 |
195 |
|
ISW65-100 |
17.5
25
32.5 |
4.86
6.94
9.03 |
13.7
12.5
10.5 |
67
69
69 |
2900 |
1.5 |
2.5 |
46 |
|
ISW65-100A |
15.6
22.3
29 |
4.3
6.19
8.1 |
11
10
8.4 |
65
67
68 |
2900 |
1.1 |
2.5 |
41 |
|
ISW65-125 |
17.5
25
32.5 |
4.86
6.94
9.03 |
21.6
20
18 |
60
68
67 |
2900 |
3 |
2.5 |
58 |
|
ISW65-125A |
15.6
22.3
29 |
4.33
6.19
8.1 |
17
16
14.4 |
58
66
65 |
2900 |
2.2 |
2.5 |
49 |
|
ISW65-160 |
17.5
25
32.5 |
4.86
6.94
9.03 |
34.4
32
27.5 |
54
63
60 |
2900 |
4.0 |
2.5 |
75 |
|
ISW65-160A |
16.4
23.4
30.4 |
4.56
6.5
8.44 |
30
28
24 |
54
62
59 |
2900 |
3 |
2.5 |
75 |
|
ISW65-160B |
15.0
21.6
28 |
4.17
6.0
7.78 |
26
24
20.6 |
58 |
2900 |
2.2 |
2.5 |
63 |
|
ISW65-200 |
17.5
25
32.5 |
4.86
6.94
9.03 |
52.7
50
45.5 |
49
58
59 |
2900 |
7.5 |
2.5 |
107 |
|
ISW65-200A |
16.4
23.5
30.5 |
4.56
6.53
8.47 |
46.4
44
40 |
48
57
58 |
2900 |
5.5 |
2.5 |
107 |
|
ISW65-200B |
15.2
21.8
28.3 |
4.22
6.06
7.86 |
40
38
34.5 |
55 |
2900 |
4 |
2.5 |
100 |
|
ISW65-250 |
17.5
25
32.5 |
4.86
6.94
9.03 |
82
80
76.5 |
39
50
52 |
2900 |
15 |
2.5 |
180 |
|
ISW65-250A |
16.4
23.4
30.5 |
4.56
6.5
8.47 |
71.5
70
67 |
39
50
52 |
2900 |
11 |
2.5 |
170 |
|
ISW65-250B |
15
21.6
28 |
4.17
6.0
7.78 |
61
60
57.4 |
38
49
54 |
2900 |
7.5 |
2.5 |
170 |
|
ISW65-315 |
17.5
25
32.5 |
4.86
6.94
9.03 |
127
125
122 |
32
40
44 |
2900 |
30 |
2.5 |
320 |
|
ISW65-315A |
16.6
23.7
31 |
4.61
6.58
8.6 |
115
113
110 |
32
40
44 |
2900 |
22 |
2.5 |
255 |
|
ISW65-315B |
15.7
22.5
29.2 |
4.36
6.25
8.0 |
103
101
98 |
39 |
2900 |
18.5 |
2.5 |
225 |
|
ISW65-315C |
14.4
20.6
26.8 |
4.0
5.72
7.44 |
86
85
83 |
38 |
2900 |
15 |
2.5 |
205 |
|
ISW65-100(I) |
35
50
65 |
9.72
13.9
18.1 |
13.8
12.5
10 |
67
73
70 |
2900 |
3 |
3.0 |
63 |
|
ISW65-100(I)A |
31.3
44.7
58 |
8.7
12.4
16.1 |
11
10
8 |
66
72
69 |
2900 |
2.2 |
3.0 |
53 |
|
ISW65-125(I) |
35
50
65 |
9.72
13.9
18.1 |
22
20
17 |
67
72.5
70 |
2900 |
5.5 |
3.0 |
99 |
|
ISW65-125(I)A |
31.3
45
58 |
8.7
12.5
16.1 |
17.5
16
13.6 |
66
71
69 |
2900 |
4 |
3.0 |
78 |
|
ISW65-160(I) |
35
50
65 |
9.72
13.9
18.1 |
35
32
28 |
63
71
70 |
2900 |
7.5 |
3.0 |
103 |
|
ISW65-160(I)A |
32.7
46.7
61 |
9.1
13
16.9 |
30.6
28
24 |
62
70
69 |
2900 |
5.5 |
3.0 |
103 |
|
ISW65-160(I)B |
30.3
43.3
56.3 |
8.4
12.0
15.6 |
26
24
21 |
69 |
2900 |
4 |
3.0 |
97 |
|
ISW65-200(I) |
35
50
65 |
9.72
13.9
18.1 |
53.5
50
46 |
55
67
68 |
2900 |
15 |
3.0 |
176 |
|
ISW65-200(I)A |
32.8
47
61 |
9.1
13.1
16.9 |
47
44
40 |
54
66
67 |
2900 |
11 |
3.0 |
166 |
|
ISW65-200(I)B |
30.5
43.5
56.6 |
8.5
12.1
15.7 |
40.6
38
33.4 |
65 |
2900 |
7.5 |
3.0 |
114 |
|
ISW65-250(I) |
35
50
65 |
9.72
13.9
18.1 |
83
80
72 |
52
59
60 |
2900 |
22 |
3.0 |
235 |
|
ISW65-250(I)A |
32.5
46.7
61 |
9.0
13.0
16.9 |
73
70
63 |
52
59
60 |
2900 |
18.5 |
3.0 |
205 |
|
ISW65-250(I)B |
30
43.3
56 |
8.3
12
15.6 |
62
60
54 |
58 |
2900 |
15 |
3.0 |
180 |
|
ISW65-315(I) |
35
50
65 |
9.72
13.9
18.1 |
128
125
121 |
44
54
57 |
2900 |
37 |
3.0 |
350 |
|
ISW65-315(I)A |
32.5
46.5
60.5 |
9.0
12.9
16.8 |
112.6
110
106.4 |
43
54
57 |
2900 |
,
30 |
3.0 |
335 |
|
ISW65-315(I)B |
31
44.5
58 |
8.6
12.4
16.1 |
102.5
100
98 |
53 |
2900 |
30 |
3.0 |
335 |
|
ISW65-315(I)C |
29
41
53.6 |
8.1
11.4
14.9 |
87
85
83 |
51 |
2900 |
22 |
3.0 |
270 |
|
ISW80-100 |
35
50
65 |
9.72
13.9
18.1 |
13.8
12.5
10 |
67
73
70 |
2900 |
3 |
3.0 |
63 |
|
ISW80-100A |
31.3
44.7
58 |
8.7
12.5
16.1 |
11
10
8 |
66
72
69 |
2900 |
2.2 |
3.0 |
54 |
|
ISW80-125 |
35
50
65 |
9.72
13.9
18.1, |
22
20
17 |
67
72.5
70 |
2900 |
5.5 |
3.0 |
99 |
|
ISW80-125A |
31.3
45
58 |
8.7
12.5
16.1 |
17.5
16
13.6 |
66
71
69 |
2900 |
4 |
3.0 |
79 |
|
型 号 |
流量 |
扬程
(m) |
效率
(%) |
转速
(r/min) |
电机功率
(kw) |
汔蚀余量
(NPSH)r |
重量
(kg) |
|
m3/h |
L/s |
|
ISW80-160 |
35
50
65 |
9.72
13.9
18.1 |
35
32
28 |
63
71
70 |
2900 |
7.5 |
3.0 |
105 |
|
ISW80-160A |
32.7
46.7
61 |
9.1
13.0
16.9 |
30.6
28
24 |
62
70
69 |
2900 |
5.5 |
3.0 |
105 |
|
ISW80-160B |
30.3
43.3
56.3 |
8.4
12.0
15.6 |
26
24
21 |
69 |
2900 |
4 |
3.0 |
98 |
|
ISW80-200 |
35
50
65 |
9.72
13.9
18.1 |
53.5
50
46 |
55
67
68 |
2900 |
15 |
3.0 |
175 |
|
ISW80-200A |
32.8
47
61 |
9.1
13.1
16.9 |
47
44
40 |
54
66
67 |
2900 |
11 |
3.0 |
165 |
|
ISW80-200B |
30.5
43.5
56.6 |
8.5
12.1
15.7 |
40.6
38
33.4 |
65 |
2900 |
7.5 |
3.0 |
115 |
|
ISW80-250 |
35
50
65 |
9.72
13.9
18.1 |
83
80
72 |
52
59
60 |
2900 |
22 |
3.0 |
240 |
|
ISW80-250A |
32.5
46.7
61 |
9.0
13.0
16.9 |
73
70
63 |
52
59
60 |
2900 |
18.5 |
3.0 |
210 |
|
ISW80-250B |
30
43.3
56 |
8.3
12.0
15.6 |
62
60
54 |
58 |
2900 |
15 |
3.0 |
185 |
|
ISW80-315 |
35
50
65 |
9.72
13.9
18.1 |
128
125
122 |
43
54
57 |
2900 |
37 |
3.0 |
355 |
|
ISW80-315A |
32.5
46.5
60.5 |
9.0
12.9
16.8 |
112.6
110
107.4 |
43
54
57 |
2900 |
30 |
3.0 |
340 |
|
ISW80-315B |
31
44.5
58 |
8.6
12.4
16.1 |
102.5
100
98 |
53 |
2900 |
30 |
3.0 |
340 |
|
ISW80-315C |
29
41
53.6 |
8.1
11.4
14.9 |
98
85
83 |
51 |
2900 |
22 |
3.0 |
275 |
|
ISW80-350 |
35
50
65 |
9.72
13.9
18.1 |
146
150
142 |
55
66
67 |
2900 |
55 |
3.0 |
570 |
|
ISW80-350A |
31
44.5
58 |
8.6
12.4
16.1 |
138.4
142
134.8 |
65 |
2900 |
45 |
3.0 |
470 |
|
ISW80-350B |
29
41
53.6 |
8.1
11.4
14.9 |
131.4
135
127.8 |
63 |
2900 |
37 |
3.0 |
440 |
|
ISW80-100(I) |
70
100
130 |
19.4
27.8
36.1 |
13.6
12.5
11 |
66
76
75 |
2900 |
5.5 |
4.5 |
108 |
|
ISW80-100(I)A |
62.6
89
116 |
17.4
24.7
32.2 |
11
10
8.8 |
64
74
74 |
2900 |
4 |
4.5 |
87 |
|
ISW80-125(I) |
70
100
130 |
19.4
27.8
36.1 |
23.5
20
14 |
70
76
65 |
2900 |
11 |
4.5 |
163 |
|
ISW80-125(I)A |
62.6
89
116 |
17.4
24.7
32.2 |
19
16
11 |
68
74
65 |
2900 |
7.5 |
4.5 |
113 |
|
ISW80-160(I) |
70
100
130 |
19.4
27.8
36.1 |
36.5
32
24 |
70
76
65 |
2900 |
15 |
4.5 |
184 |
|
ISW80-160(I)A |
65.4
93.5
121.6 |
18.2
26.0
33.8 |
32
28
21 |
68
74
67 |
2900 |
11 |
4.5 |
174 |
|
ISW80-160(I)B |
60.6
86.6
112.5 |
16.8
24.1
31.3 |
72
24
18 |
72 |
2900 |
7.5 |
4.5 |
174 |
|
ISW80-200(I) |
70
100
130 |
19.4
27.8
36.1 |
54
50
42 |
65
74
73 |
2900 |
22 |
4.0 |
251 |
|
ISW80-200(I)A |
65.4
93.5
121.6 |
18.2
26.0
33.8 |
47.5
44
37 |
67
73
72 |
2900 |
18.5 |
4.0 |
220 |
|
ISW80-200(I)B |
61
87
113 |
16.9
24.2
31.4 |
41
38
32 |
71 |
2900 |
15 |
4.0 |
198 |
|
ISW80-250(I) |
70
100
130 |
19.4
27.8
36.1 |
87
80
68 |
62
69
68 |
2900 |
37 |
4.0 |
330 |
|
ISW80-250(I)A |
65.4
93.5
121.6 |
18.2
26.0
33.8 |
76
70
59.5 |
61
68
67 |
2900 |
30 |
4.0 |
315 |
|
ISW80-250(I)B |
61
87
113 |
16.9
24.2
31.4 |
65
60
51 |
66 |
2900 |
22 |
4.0 |
315 |
|
ISW80-315(I) |
70
100
130 |
19.4
27.8
36.1 |
132
125
114 |
55
66
67 |
2900 |
75 |
4.0 |
675 |
|
ISW80-315(I)A |
66.5
95
123.6 |
18.5
26.4
34.3 |
119
113
103 |
55
66
67 |
2900 |
55 |
4.0 |
535 |
|
ISW80-315(I)B |
63
90
117 |
17.5
25
32.5 |
106.6
101
92 |
65 |
2900 |
45 |
4.0 |
420 |
|
ISW80-315(I)C |
58
82
107 |
16.1
22.8
29.7 |
90
85
76 |
63 |
2900 |
37 |
4.0 |
366 |
|
ISW100-100 |
70
100
130 |
19.4
27.8
36.1 |
13.6
12.5
11 |
66
76
75 |
2900 |
5.5 |
4.5 |
113 |
|
ISW100-100A |
62.6
89
116 |
17.4
47
32.2 |
11
10
8.8 |
64
74
74 |
2900 |
4 |
4.5 |
91 |
|
ISW100-125 |
70
100
130 |
19.4
27.8
36.1 |
23.5
20
14 |
70
76
65 |
2900 |
11 |
4.5 |
169 |
|
ISW100-125A |
62.6
89
116 |
17.4
24.7
32.2 |
19
16
11 |
68
74
63 |
2900 |
7.5 |
4.5 |
118 |
|
ISW100-160 |
70
100
130 |
19.4
27.8
36.1 |
36.5
32
24 |
70
76
65 |
2900 |
15 |
4.5 |
191 |
|
ISW100-160A |
65.4
93.5
121.6 |
18.2
26.0
33.8 |
32
28
21 |
68
74
67 |
2900 |
11 |
4.5 |
181 |
|
ISW100-160B |
60.6
86.6
112.5 |
16.8
24.1
31.3 |
27
24
18 |
72 |
2900 |
7.5 |
4.5 |
181 |
|
ISW100-200 |
70
100
130 |
19.4
27.8
36.1 |
54
50
42 |
65
74
73 |
2900 |
22 |
4.0 |
245 |
|
ISW100-200A |
65.4
93.5
121.6 |
18.2
26.0
33.8 |
47.5
44
37 |
64
73
72 |
2900 |
18.5 |
4.0 |
215 |
|
ISW100-200B |
61
87
113 |
16.9
24.2
31.4 |
41
38
32 |
71 |
2900 |
15 |
4.0 |
193 |
|
ISW100-250 |
70
100
130 |
19.4,
27., 8
36.1 |
87
80
68 |
62
69
68 |
2900 |
37 |
4.0 |
345 |
|
ISW100-250A |
65.4
93.5
121.6 |
18.2
26.0
33.8 |
76
70
59.5 |
61
68
67 |
2900 |
30 |
4.0 |
330 |
|
ISW100-250B |
61
87
113 |
16.9
24.2
31.4 |
65
60
51 |
66 |
2900 |
33 |
4.0 |
330 |
|
ISW100-315 |
70
100
130 |
19.4
27.8
36.1 |
132
125
114 |
55
66
67 |
2900 |
75 |
4.0 |
689 |
|
ISW100-315A |
66.5
95
123.6 |
,
18.5
26.4
34.3 |
119
113
103 |
65
66
67 |
2900 |
55 |
4.0 |
549 |
|
ISW100-315B |
63
90
117 |
17.5
25
32.5 |
106.6
101
92 |
65 |
2900 |
45 |
4.0 |
439 |
|
ISW100-315C |
58
82
107 |
16.1
22.8
29.7 |
90
85
76 |
63 |
2900 |
37 |
4.0 |
385 |
|
ISW100-100(I) |
96
160
192 |
26.7
44.4
53.3 |
14
12.5
10 |
64
73
70 |
2900 |
11 |
4.5 |
115 |
|
ISW100-125(I) |
96
160
192 |
26.7
44.4
53.3 |
24
20
14 |
62
74
69 |
2900 |
15 |
4.5 |
168 |
|
ISW100-125(I)A |
84
140
168 |
23.3
39
46.7 |
20
17
12 |
64
72
68 |
2900 |
11 |
4.5 |
168 |
|
ISW100-160(I) |
96
160
192 |
26.7
44.4
53.3 |
36
32
27 |
69
79
75 |
2900 |
22 |
5.6 |
210 |
|
ISW100-160(I)A |
84
140
168 |
23.3
39
46.7 |
32
28
23.5 |
66
76
72 |
2900 |
18.5 |
5.0 |
210 |
|
ISW100-200(I) |
96
160
192 |
26.7
44.4
53.3 |
53
50
45 |
69
79
78 |
2900 |
37 |
5.2 |
402 |
|
ISW100-200(I)A |
84
140
168 |
23.3
39
46.7 |
48
45
40 |
64
74
73 |
2900 |
30 |
4.5 |
395 |
|
ISW100-200(I)B |
60
100
120 |
16.7
27.8
33.3 |
43
40
36 |
72 |
2900 |
22 |
4.5 |
360 |
|
ISW100-250(I) |
96
160
192 |
26.7
44.4
53.3 |
83
80
72 |
65
77
74 |
2900 |
55 |
4.8 |
560 |
|
ISW100-250(I)A |
84
140
168 |
23.3
39
46.7 |
75
72
65 |
60
72
69 |
2900 |
45 |
4.5 |
420 |
|
ISW100-250(I)B |
60
100
120 |
16.7
27.8
33.3 |
68
65
58 |
70 |
2900 |
37 |
4.5 |
400 |
|
ISW100-350 |
60
100
120 |
16.7
27.8
33.3 |
153.6
150
142 |
72
57
74 |
2900 |
90 |
4.0 |
950 |
|
ISW100-350A |
61
87
113 |
16.9
24.2
31.4 |
145.6
142
134 |
75 |
2900 |
75 |
4.0 |
830 |
|
型 号 |
流量 |
扬程
(m) |
效率
(%) |
转速
(r/min) |
电机功率
(kw) |
汔蚀余量
(NPSH)r |
重量
(kg) |
|
m3/h |
L/s |
|
ISW100-350B |
58
82
107 |
16.1
22.8
29.7 |
138.6
135
127 |
75 |
2900 |
55 |
4.0 |
600 |
|
ISW125-100 |
96
160
192 |
26.7
44.4
53.3 |
13
12.5
12 |
82 |
2900 |
11 |
4.0 |
180 |
|
ISW125-100A |
86
143
172 |
23.9
39.7
47.8 |
10.4
10
9.6 |
77 |
2900 |
7.5 |
4.0 |
125 |
|
ISW125-125 |
96
160
192 |
26.7
44.4
53.3 |
22.6
20
17 |
80 |
2900 |
15 |
4.0 |
220 |
|
ISW125-125A |
86
143
172 |
23.9
39.7
47.8 |
18
16
13.6 |
77 |
2900 |
11 |
4.0 |
210 |
|
ISW125-160 |
96
160
192 |
26.7
44.4
53.3 |
36
32
28 |
78 |
2900 |
22 |
4.0 |
265 |
|
ISW125-160A |
90
150
180 |
25
41.7
50 |
31.5
28
24.5 |
76 |
2900 |
18.5 |
4.0 |
230 |
|
ISW125-160B |
83
138
166 |
21.7
38.3
46.1 |
27
24
21 |
73 |
2900 |
15 |
4.0 |
215 |
|
ISW125-200 |
96
160
192 |
26.7
44.4
53.3 |
55
50
46 |
77 |
2900 |
37 |
5.5 |
395 |
|
ISW125-200A |
90
150
180 |
25
41.7
50 |
48.4
44
40.5 |
76 |
2900 |
30 |
5.5 |
380 |
|
ISW125-200B |
83
138
166 |
21.7
38.3
46.1 |
41.3
37.5
34.5 |
75 |
2900 |
22 |
5.5 |
320 |
|
ISW125-250 |
96
160
192 |
26.7
44.4
53.3 |
87
80
73 |
75 |
2900 |
55 |
5.0 |
580 |
|
ISW125-250A |
90
150
180 |
25
41.7
50 |
76
70
84 |
74 |
2900 |
45 |
5.5 |
490 |
|
ISW125-250B |
83
138
166 |
21.7
38.3
46.1 |
65
60
55 |
73 |
2900 |
37 |
5.5 |
430 |
|
ISW125-315 |
96
160
192 |
26.7
44.7
53.3 |
133
125
119 |
70 |
2900 |
90 |
5.0 |
790 |
|
ISW125-315A |
90
150
180 |
25
41.7
50 |
117
110
104.6 |
70 |
2900 |
75 |
5.0 |
710 |
|
ISW125-315B |
86
143
172 |
23.9
39.7
47.8 |
106.4
100
95.2 |
69 |
2900 |
75 |
5.0 |
705 |
|
ISW125-315C |
80.5
134
161 |
22.4
37.2
44.7 |
96
88
86 |
67 |
2900 |
55 |
5.0 |
585 |
|
ISW150-125 |
96
160
192 |
26.7
44.4
53.3 |
22.6
24
17 |
66
76
76 |
2900 |
11 |
4.0 |
210 |
|
ISW150-125A |
90
150
180 |
25
41.7
50 |
18
16
13.6 |
77 |
2900 |
7.5 |
4.0 |
130 |
|
ISW150-160 |
96
160
192 |
26.7
44.4
53.3 |
36
32
27 |
75 |
2900 |
22 |
4.0 |
270 |
|
ISW150-160A |
90
150
180 |
25
41.7
50 |
32
28
23.5 |
76 |
2900 |
18.5 |
4.0 |
230 |
|
ISW150-160B |
84
140
168 |
23.3
39
46.7 |
27
24
21 |
73 |
2900 |
15 |
4.0 |
220 |
|
ISW150-200 |
140
200
260 |
38.9
55.6
72.2 |
13.8
12.5
10.6 |
68
78
78 |
1450 |
15 |
3.0 |
265 |
|
ISW150-200A |
125
176
232.5 |
34.7
49.7
64.6 |
11
10
8.5 |
66
76
76 |
1450 |
11 |
3.0 |
244 |
|
ISW150-200B |
84
140
168 |
23.3
39
46.7 |
41
38
34 |
75 |
2900 |
22 |
4.0 |
275 |
|
ISW150-250 |
140
200
260 |
38.9
55.6
72.2 |
21.8
20
17 |
73
79
77 |
1450 |
18.5 |
3.0 |
300 |
|
ISW150-250A |
129
184.4
240 |
35.8
51.2
66.7 |
18.5
17
14.4 |
72
78
76 |
1450 |
15 |
3.0 |
262 |
|
ISW150-250B |
117
167
217.5 |
32.5
46.4
60.4 |
15.2
14
12 |
76 |
1450 |
11 |
3.0 |
241 |
|
ISW150-315 |
140
200
260 |
38.9
55.6
72.2 |
33.8
32
28 |
70
78
73 |
1450 |
30 |
2.5 |
410 |
|
ISW150-315A |
131
187
243 |
36.4
51.9
67.5 |
29.5
28
24.5 |
69
77
77 |
1450 |
22 |
3.5 |
335 |
|
ISW150-315B |
121
173
225 |
33.5
48.1
62.5 |
25
24
21 |
76 |
1450 |
18.5 |
3.5 |
315 |
|
ISW150-350 |
96
160
192 |
26.7
44.4
53.3 |
153.6
150
142.8 |
80 |
2900 |
110 |
5.5 |
970 |
|
ISW150-350A |
90
150
180 |
25
41.7
50 |
145.6
142
134.8 |
70 |
2900 |
90 |
5.2 |
790 |
|
ISW150-350B |
84
140
168 |
23.3
39
46.7 |
138.8
135
127.8 |
65
76
74 |
2900 |
75 |
5.5 |
705 |
|
ISW150-400 |
140
200
260 |
,
38.9
55.6
72.2 |
53
50
44 |
68
75
71 |
1450 |
45 |
3.5 |
490 |
|
ISW150-400A |
131
187
243 |
36.4
51.9
67.5 |
46.6
44
38.3 |
67
74
70 |
1450 |
37 |
3.5 |
454 |
|
ISW150-400B |
122
174
226.5 |
33.9
48.3
62.9 |
40
38
33 |
73 |
1450 |
30 |
3.5 |
435 |
|
ISW150-400C |
112
160
208 |
31.1
44.4
57.8 |
34
32
28 |
71 |
1450 |
22 |
3.5 |
365 |
|
ISW150-250(I) |
120
200
240 , |
33.355.6
66.7 |
87
80
72 |
65
76
74 |
2900 |
75 |
4.5 |
702 |
|
ISW150-250(I)A |
112
187
224 |
31.1
51.9
62.2 |
76
70
63 |
64
75
73 |
2900 |
55 |
4.5 |
561 |
|
ISW150-250(I)B |
104
173
208 |
28.9
48.1
57.8 |
65
60
54 |
63
74
72 |
2900 |
45 |
4.5 |
460 |
|
ISW150-315(I) |
120
200
240 |
33.3
55.6
66.7 |
133
125
120 |
58
73
75 |
2900 |
110 |
4.5 |
980 |
|
ISW150-315(I)A |
112
187
224 |
31.1
51.9
62.2 |
116
110
105 |
57
72
74 |
2900 |
90 |
4.5 |
800 |
|
ISW150-315(I)B |
104
173
208 |
28.9
48.1
57.8 |
100
95
91 |
55
70
72 |
2900 |
75 |
4.5 |
724 |
|
ISW200-200 |
140
200
260 |
38.9
55.6
72.2 |
13.8
12.5
10.6 |
68
78
78 |
1450 |
15 |
3.0 |
265 |
|
ISW200-200A |
125
179
232.5 |
34.7
49.7
64.6 |
11
10
8.5 |
66
76
76 |
1450 |
11 |
3.0 |
244 |
|
ISW200-250 |
140
200
260 |
38.9
55.6
72.2 |
21.8
20
17 |
73
79
77 |
1450 |
18.5 |
3.0 |
305 |
|
ISW200-250A |
129
184.4
240 |
35.8
51.2
66.7 |
18.5
17
14.4 |
72
78
76 |
1450 |
15 |
3.0 |
267 |
|
ISW200-250B |
117
167
217.5 |
32.5
46.4
60.4 |
15.2
14
12 |
76 |
1450 |
11 |
3.0 |
246 |
|
ISW200-315 |
140
200
260 |
38.9
55.6
72.2 |
33.8
32
28 |
70
78
78 |
1450 |
30 |
3.5 |
417 |
|
ISW200-315A |
131
189
243 |
36.4
51.9
67.5 |
29.5
28
24.5 |
69
77
77 |
1450 |
22 |
3.5 |
342 |
|
ISW200-315B |
121
173
225 |
33.6
48.1
62.5 |
25
24
21 |
76 |
1450 |
18.5 |
3.5 |
322 |
|
ISW200-400 |
140
200
260 |
38.9
55.6
72.2 |
53
50
44 |
68
75
71 |
1450 |
45 |
3.5 |
498 |
|
ISW200-400A |
131
187
243 |
36.4
51.9
67.5 |
46.6
44
38.3 |
67
74
70 |
1450 |
37 |
3.5 |
462 |
|
ISW200-400B |
122
174
226.5 |
33.9
48.5
62.9 |
40
38
33 |
73 |
1450 |
30 |
3.5 |
443 |
|
ISW200-400C |
112
160
208 |
31.3
44.4
57.8 |
34
32
28 |
71 |
1450 |
22 |
3.5 |
373 |
|
ISW200-200(I) |
280
400
520 |
77.8
111.1
144 |
13.4
12.5
10.5 |
70
80
79 |
1450 |
22 |
4.0 |
382 |
|
ISW200-200(I)A |
250
358
465 |
69.4
90.4
129.2 |
10.7
10
8.5 |
68
78
77 |
1450 |
18.5 |
4.0 |
346 |
|
ISW200-250(I) |
280
400
520 |
77.8
111.1
144 |
22.2
20
14 |
75
80
72 |
1450 |
30 |
4.0 |
475 |
|
ISW200-250(I)A |
250
358
465 |
69.4
99.4
129.2 |
18
14
11.2 |
73
78
70 |
1450 |
20 |
4.0 |
405 |
|
ISW200-250(I)B |
226
322
419 |
62.8
89.4
116.4 |
14.4
13
7.3 |
70
75
67 |
1450 |
18.5 |
4.0 |
387 |
|
ISW200-315(I) |
280
400
520 |
77.8
111.4
144 |
36
32
26 |
73
80
75 |
1450 |
55 |
4.0 |
675 |
|
型 号 |
流量 |
扬程
(m) |
效率
(%) |
转速
(r/min) |
电机功率
(kw) |
汔蚀余量
(NPSH)r |
重量
(kg) |
|
m3/h |
L/s |
|
ISW200-315(I)A |
262
374
486 |
72.8
103.9
135 |
31.5
28
23 |
72
79
74 |
1450 |
45 |
4.0 |
560 |
|
ISW200-315(I)B |
242
346
450 |
67.2
96.1
125 |
27
24
19.5 |
78 |
1450 |
37 |
4.0 |
535 |
|
ISW200-400(I) |
280
400
520 |
77.8
111.4
144 |
54.5
50
39 |
75
81
77 |
1450 |
75 |
4.0 |
830 |
|
ISW200-400(I)A |
262
374
486 |
72.8
103.9
135 |
48
44
34 |
80 |
1450 |
75 |
4.0 |
830 |
|
ISW200-400(I)B |
242
346
450 |
67.2
96.1
125 |
41.4
38
29.6 |
78 |
1450 |
55 |
5.0 |
685 |
|
ISW200-400(I)C |
224
320
416 |
62.2
88.9
115.6 |
34.9
32
25 |
76 |
1450 |
45 |
5.0 |
580 |
|
ISW250-250 |
350
550
650 |
97.2
152.8
180.5 |
22
20
16 |
78
82
81 |
1450 |
45 |
5.0 |
620 |
|
ISW250-250A |
300
500
600 |
18.3
139
166.7 |
18.3
17
14 |
76
80
80 |
1450 |
37 |
5.0 |
550 |
|
ISW250-235 |
300
500
600 |
83.3
139
166.7 |
14
12.5
11 |
73
78
70 |
1480 |
22 |
4.5 |
410 |
|
ISW250-300 |
300
500
600 |
83.3
139
166.7 |
22
20
16 |
78 |
1480 |
37 |
4.5 |
550 |
|
ISW250-315 |
350
550
650 |
97.2
152.8
180.5 |
34
32
28 |
76
80
79 |
1450 |
75 |
5.5 |
890 |
|
ISW250-315A |
300
500
600 |
83.3
139
166.7 |
29.5
28
24 |
74
78
77 |
1450 |
55 |
5.5 |
690 |
|
ISW250-315B |
260
450
520 |
72.2
125
144.4 |
25
24
20 |
70
74
72 |
1450 |
45 |
5.5 |
620 |
|
ISW250-400 |
300
500
600 |
83.3
139
166.7 |
54.5
50
39 |
72 |
1480 |
90 |
4.5 |
1530 |
|
ISW300-235 |
540
720
900 |
150
200
250 |
20.5
18
15.0 |
77
81
74 |
1450 |
55 |
5.0 |
1075 |
|
ISW300-235A |
450
600
720 |
125
166
200 |
17.2
15
12.5 |
74
79
77 |
1450 |
45 |
5.0 |
970 |
|
ISW300-235B |
420
540
650 |
116.7
150
181 |
14.3
12.8
10.5 |
73
78
70 |
1450 |
37 |
5.0 |
925 |
|
ISW300-250 |
540
720
900 |
150
200
250 |
22.5
20
17 |
80
83
84 |
1450 |
55 |
6.0 |
1085 |
|
ISW300-250A |
450
600
720 |
136
166
200 |
19.5
17
14 |
81 |
1450 |
45 |
6.0 |
980 |
|
ISW300-300 |
540
720
900 |
150
200
250 |
32
28
23 |
82 |
1480 |
75 |
5.0 |
1230 |
|
ISW300-300A |
450
600
720 |
125
166
200 |
27.5
24
20 |
80 |
1480 |
75 |
5.0 |
1095 |
|
ISW300-300B |
420
540
650 |
116.7
150
181 |
24
21
17 |
78 |
1480 |
55 |
5.0 |
980 |
|
ISW300-315 |
540
720
900 |
150
200
250 |
35
32
26 |
84 |
1480 |
90 |
4.5 |
1350 |
|
ISW300-315A |
460
650
800 |
127.8
180
222 |
31.5
28
23.5 |
80 |
1480 |
75 |
4.5 |
1240 |
|
ISW300-315B |
420
580
700 |
116.7
161
194 |
27
24
20.0 |
78 |
1480 |
55 |
4.5 |
1100 |
|
ISW300-380 |
480
720
900 |
133.3
200
250 |
48
44
34 |
84 |
970 |
132.0 |
5.0 |
1900 |
|
ISW300-380A |
444
666
833 |
123.3
185
231.4 |
41.4
38
30 |
80 |
970 |
110.0 |
5.0 |
1700 |
|
ISW300-380B |
4, 00
614
764 |
113.6
170.6
213.1 |
35
32
35 |
78 |
970 |
90.0 |
5.0 |
1530 |
|
ISW300-390 |
540
720
900 |
150
200
250 |
20.5
18
15.5 |
78
81
76 |
980 |
55 |
5.0 |
1300 |
|
ISW300-390A |
450
600
720 |
126
167
200 |
17.2
15
12.8 |
77
79
75 |
980 |
45 |
5.0 |
1220 |
|
ISW300-390B |
400
540
650 |
111
150
180 |
14
12.5
11.5 |
74
77
76 |
980 |
37 |
5.0 |
1100 |
|
ISW300-400 |
450
600
720 |
125
166
200 |
55
50
42.5 |
78 |
1480 |
110 |
5.0 |
1500 |
|
ISW300-480 |
540
720
900 |
150
200
250 |
31
28
24 |
79
81
80 |
980 |
75 |
5.0 |
1500 |
|
ISW300-480A |
450
600
720 |
126
, 166
200 |
27.4
24
20.0 |
78
80
79 |
980 |
75 |
5.0 |
1280 |
|
ISW300-480B |
400
540
650 |
111
150
180 |
24
21
17 |
79 |
980 |
55 |
5.0 |
1180 |
|
ISW350-235 |
600
800
960 |
167
222
267 |
14
12.5
10.5 |
80
83
82 |
1480 |
37 |
4.5 |
1050 |
|
ISW350-300 |
600
800
960 |
167
222
267 |
22.5
20
17.5 |
79
82
71 |
1480 |
55 |
4.5 |
1230 |
|
ISW350-315 |
600
800
960 |
167
222
267 |
35.5
32
28.5 |
84 |
1480 |
90 |
4.5 |
1650 |
|
ISW350-400 |
600
800
960 |
167
222
267 |
55
50
45.5 |
83 |
1480 |
160 |
4.5 |
1950 |
|
ISW400-300 |
920
1080
1300 |
228
300
361 |
23
20
16 |
78 |
1480 |
90 |
6.0 |
1570 |
|
ISW400-315 |
820
1080
1300 |
205
300
344 |
36.5
32
27 |
76 |
1480 |
132 |
6.0 |
1880 |
|
ISW500-300 |
1000
1200
1450 |
277.8
333
403 |
23
20
16.0 |
80 |
1480 |
110 |
6.0 |
1800 |
|
ISW500-315 |
1000
1200
1450 |
278
333
403 |
34.5
32
27 |
78 |
1480 |
160 |
6.0 |
2070 | | | |
|
|
|
|
