产品概述 |
 |
|
| |
ISGB离心泵、IRGB型便拆式管道泵是在整体结构上进行大胆突破设计，采用独立轴承体、泵轴支撑、解决了原来立式泵靠电机加长轴支撑的不足之处；叶轮、泵体采用水力模型设计制造，消除了原立式泵轴向力大的不足之处；电机采用Y系列标准通用电机，解决原立式泵加长轴电机配套更换难的问题；同时100%的便拆结构解决了更换大功率水泵的轴承,机械密封、叶轮、泵轴的难题。该便拆式离心泵与国内同类产品相比，具有运转更平稳，使用寿命长，配套更方便，维护保养。
|
|
产品用途 |
 |
|
|
ISGB管道离心泵使用范围：
1、ISGB离心泵，供输送清水及物理性质似清水的其它液体之用，使用介质温度不超过80℃，适用于工
业和城市给排水、高层建筑增压送水、园林喷灌、消防增压、远距离送水、采暖、浴室等冷暖水循 环
增压及设备配套等。
2、IRGB热水管道循环泵，适用于能源、冶金、木材加工、化工、纺织、造纸及饭店、浴室、宾馆等锅炉热
水增压循环输送及城市采暖系统循环用泵，使用介质温度不超过120℃。
3、IHGB立式化工泵 ，适用于轻纺、石油、化工、医药、卫生、食品、炼油等工业输送化学腐蚀性液体，
介质温度为-20℃～+120℃。
4、YGB立式管道油泵供输送汽油、煤油、柴油等石油产品，被输送介质温度为-20℃～+120℃。
|
产品特点 |
|
|
|

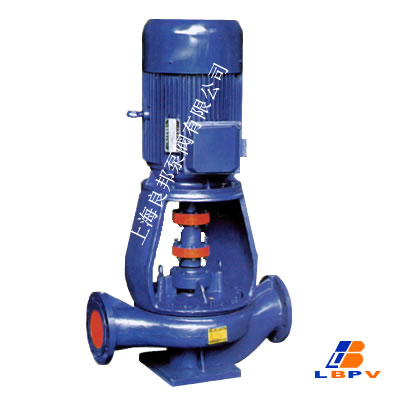

ISGB便拆式离心泵产品特点
1.立式结构，安装调试方便，独特设计的电机和泵体采用联接体联接，同心度高、加工精度高，占地面积大大减少。
2.ISGB便拆式离心泵配用国内著名厂家生产的低速Y系列标准通用电机，运行平稳、噪音极低。
3.电机轴承座内的轴承都配有加油孔和放油孔，对轴承的维护保养十分方便。
4.ISGB便拆式离心泵可拆卸爪型弹性联轴器，使泵起动无振动、无噪音,旋转部件设有可靠的安全防护罩，安全性极好。
5.机械密封采用不锈钢、碳化钨、氟橡胶等材料制成，耐高温、高压、运行寿命长，无渗漏，对轴无磨损，保证工作环境整洁。
6.泵盖结构设计独特，只要卸下爪型弹性联轴器、泵盖螺母，即可十分轻便取出轴承座、泵盖、泵轴、叶轮等组合件，进行更换 机械密封和叶轮，而不必拆卸电机、泵体和管道，维修方便快捷。
|
性能参数 |
|
|
|
|
型 号 |
流量Q |
扬程
H
m |
效率
% |
转速
N
r/min |
电机功率
P
KW |
必需汽蚀余量
NPSHr
m |
重量
W
kg |
|
m3/h |
l/s |
|
ISGB40-12.5 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
13.2
12.5
11.3 |
48
54
53 |
2900 |
0.55 |
2.3 |
35 |
|
ISGB40-12.5A |
3.9
5.6
7.4 |
1.08
1.56
2.06 |
10.6
10
9 |
52 |
2900 |
0.37 |
2.3 |
35 |
|
ISGB40-20 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
21
20
18 |
41
46
43 |
2900 |
1.1 |
2.3 |
35 |
|
ISGB40-20A |
3.9
5.6
7.4 |
1.08
1.56
2.06 |
17.6
16
14.4 |
40
45
41 |
2900 |
0.75 |
2.3 |
33 |
|
ISGB40-32 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
23
32
30 |
35
40
40 |
2900 |
2.2 |
2.3 |
50 |
|
ISGB40-32A |
4.1
5.9
7.8 |
1.14
1.64
2.17 |
29
28
26.3 |
34
39
39 |
2900 |
1.5 |
2.3 |
45 |
|
ISGB40-32B |
3.8
5.5
7.2 |
1.06
1.53
2.00 |
25.5
24
22.5 |
34
38
37 |
2900 |
1.1 |
2.3 |
40 |
|
ISGB40-50 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
51
50
48 |
26
33
32 |
2900 |
4.0 |
2.3 |
75 |
|
ISGB40-50A |
4.1
5.9
7.8 |
1.14
1.64
2.17 |
45
44
42 |
20
31
30 |
2900 |
3.0 |
2.3 |
65 |
|
ISGB40-50B |
3.7
5.3
7.0 |
1.03
1.47
1.94 |
38
36
34.5 |
29 |
2900 |
2.2 |
2.3 |
55 |
|
ISGB40-80 |
4.4
6.3
8.3 |
1.22
1.75
2.31 |
82
80
74 |
24
28
28 |
2900 |
7.5 |
2.3 |
110 |
|
ISGB40-80A |
4.1
5.9
7.8 |
1.14
1.64
2.17 |
72
70
65 |
24
28
27 |
2900 |
5.5 |
2.3 |
105 |
|
ISGB40-80B |
3.8
5.5
7.2 |
1.06
1.53
2.00 |
61.5
60
56 |
23
27
26 |
2900 |
5.5 |
2.3 |
80 |
|
ISGB40-12.5(I) |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
13.2
12.5
11.3 |
55
62
60 |
2900 |
1.1 |
2.3 |
35 |
|
ISGB40-12.5(I)A |
8
11
14.5 |
2.22
3.06
4.03 |
10.6
10
9 |
60 |
2900 |
0.75 |
2.3 |
32 |
|
ISGB40-20(I) |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
21.5
20
57 |
49
58
57 |
2900 |
1.5 |
2.3 |
40 |
|
ISGB40-20(I)A |
8
11
14.5 |
2.22
3.05
4.03 |
17
16
14 |
57 |
2900 |
1.1 |
2.3 |
35 |
|
ISGB40-32(I) |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
33
32
30 |
45
52
51 |
2900 |
3.0 |
2.3 |
60 |
|
ISGB40-32(I)A |
8.2
11.7
15.2 |
2.28
3.25
4.22 |
29
28
26 |
44
51
50 |
2900 |
2.2 |
2.3 |
50 |
|
ISGB40-32(I)B |
7.3
10.4
13.5 |
2.38
2.89
3.75 |
26
24
20 |
50 |
2900 |
1.5 |
2.3 |
45 |
|
ISGB40-50(I) |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
51.2
50
48 |
38
46
46 |
2900 |
5.5 |
2.3 |
90 |
|
ISGB40-50(I)A |
8.3
11.7
15.3 |
2.31
3.25
4.25 |
45
44
42 |
37
46
45 |
2900 |
4.0 |
2.3 |
80 |
|
ISGB40-50(I)B |
7.5
10.6
13.8 |
2.08
2.94
3.83 |
37
36
34 |
40 |
2900 |
3.0 |
2.3 |
70 |
|
ISGB40-80(I) |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
81.2
80
77.5 |
31
38
40 |
2900 |
11.0 |
2.3 |
150 |
|
ISGB40-80(I)A |
8.2
11.6
15.2 |
2.28
3.22
4.22 |
71
70
68 |
38 |
2900 |
7.5 |
2.3 |
100 |
|
ISGB40-80(I)B |
7.6
10.8
14 |
2.11
3.0
3.89 |
61.4
60
58 |
37 |
2900 |
7.5 |
2.3 |
95 |
|
ISGB40-80(I)C |
7.1
10.1
13.1 |
1.97
2.87
3.64 |
53.2
52
50.4 |
36 |
2900 |
5.5 |
2.3 |
90 |
|
ISGB50-12.5 |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
13.6
12.5
11.3 |
55
62
60 |
2900 |
1.1 |
2.3 |
40 |
|
ISGB50-12.5A |
8
11
14.5 |
2.22
3.05
4.03 |
11
10
9 |
60 |
2900 |
0.75 |
2.3 |
35 |
|
ISGB50-20 |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
21.5
20
17.8 |
49
58
57 |
2900 |
1.5 |
2.3 |
45 |
|
ISGB50-20A |
8
11
14.5 |
2.22
3.05
4.03 |
17
16
14 |
57 |
2900 |
1.1 |
2.3 |
40 |
|
ISGB50-32 |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
33
32
30 |
45
52
51 |
2900 |
3.0 |
2.3 |
60 |
|
ISGB50-32A |
8.2
11.7
15.2 |
2.28
3.25
4.22 |
29
28
26 |
44
51
50 |
2900 |
2.2 |
2.3 |
50 |
|
ISGB50-32B |
7.3
10.4
13.5 |
2.38
2.89
3.75 |
23
22
20.5 |
50 |
2900 |
1.5 |
2.3 |
46 |
|
ISGB50-50 |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
52
50
48 |
38
46
46 |
2900 |
5.5 |
2.3 |
105 |
|
ISGB50-50A |
8.3
11.7
15.3 |
2.31
3.25
4.25 |
45.8
44
42 |
37
45
45 |
2900 |
4.0 |
2.3 |
85 |
|
ISGB50-50B |
7.5
10.6
13.8 |
2.08
2.94
3.83 |
40
38
35 |
44 |
2900 |
3.0 |
2.3 |
70 |
|
ISGB50-80 |
8.8
12.5
16.3 |
2.44
3.47
4.53 |
82
80
77.5 |
29
38
40 |
2900 |
11.0 |
2.3 |
160 |
|
ISGB50-80A |
8.2
11.6
15.2 |
2.28
3.22
4.22 |
71.5
70
68 |
29
38
41 |
2900 |
7.5 |
2.3 |
120 |
|
ISGB50-80B |
7.6
10.8
14 |
2.11
3.0
3.89 |
61.5
60
58 |
27.5
37
40 |
2900 |
7.5 |
2.3 |
115 |
|
ISGB50-80C |
7.1
10.0
13.1 |
1.97
2.78
3.64 |
53.2
52
50.4 |
27
36
39 |
2900 |
5.5 |
2.3 |
110 |
|
ISGB50-12.5(I) |
17.5
25
32.5 |
4.86
6.97
9.03 |
13.7
12.5
10.5 |
67
69
69 |
2900 |
1.5 |
2.5 |
45 |
|
ISGB50-12.5(I)A |
15.6
22.3
29 |
4.3
6.19
8.1 |
11
10
8.4 |
65
67
68 |
2900 |
1.1 |
2.5 |
40 |
|
ISGB50-20(I) |
17.5
25
32.5 |
4.86
6.94
9.03 |
21.5
20
18 |
60
68
67 |
2900 |
3.0 |
2.5 |
60 |
|
ISGB50-20(I)A |
15.6
22.3
29 |
4.33
6.19
8.1 |
17.5
16
13.6 |
58
66
65 |
2900 |
2.2 |
2.5 |
50 |
|
ISGB50-32(I) |
17.5
25
32.5 |
4.86
6.94
9.03 |
34.4
32
27.5 |
55
63
60 |
2900 |
4.0 |
2.5 |
75 |
|
ISGB50-32(I)A |
16.4
23.4
30.4 |
4.56
6.5
8.44 |
30
28
24 |
54
62
59 |
2900 |
4.0 |
2.5 |
75 |
|
ISGB50-32(I)B |
15.0
21.6
28 |
4.17
6.0
7.78 |
26
24
20.6 |
61 |
2900 |
3.0 |
2.5 |
65 |
|
ISGB50-50(I) |
17.5
25
32.5 |
4.86
6.94
9.03 |
52.7
50
45.5 |
49
58
59 |
2900 |
7.5 |
2.5 |
110 |
|
ISGB50-50(I)A |
16.4
23.5
30.5 |
4.56
6.53
8.47 |
46.4
44
40 |
48
57
58 |
2900 |
7.5 |
2.5 |
110 |
|
ISGB50-50(I)B |
15.2
21.8
28.3 |
4.22
6.06
7.86 |
40.5
38
34.5 |
55 |
2900 |
5.5 |
2.5 |
100 |
|
ISGB50-80(I) |
17.5
25
32.5 |
4.86
6.94
9.03 |
82
80
76.5 |
39
50
52 |
2900 |
15.0 |
2.5 |
175 |
|
ISGB50-80(I)A |
16.4
23.4
30.5 |
4.56
6.5
8.47 |
71.5
70
67 |
39
51
52 |
2900 |
11.0 |
2.5 |
165 |
|
ISGB50-80(I)B |
15
21.6
28 |
4.17
6.0
7.78 |
61
60
58 |
38
50
54 |
2900 |
11.0 |
2.5 |
165 |
|
ISGB50-125(I) |
17.3
25
32.5 |
4.6
6.94
9.03 |
128
125
122 |
31
40
44 |
2900 |
30.0 |
2.5 |
310 |
|
ISGB50-125(I)A |
16.6
23.7
31 |
4.61
6.58
8.6 |
115
113
110 |
30
40
44 |
2900 |
22.0 |
2.5 |
250 |
|
ISGB50-125(I)B |
15.7
22.5
29.2 |
4.36
6.25
8.0 |
103
101
98 |
39 |
2900 |
18.5 |
2.5 |
215 |
|
ISGB50-125(I)C |
14.4
20.6
26.8 |
4.0
5.72
7.44 |
86
85
83 |
38 |
2900 |
15.0 |
2.5 |
195 |
|
ISGB65-12.5 |
17.5
25
32.5 |
4.86
6.94
9.03 |
13.7
12.5
10.5 |
67
69
69 |
2900 |
1.5 |
2.5 |
45 |
|
ISGB65-12.5A |
15.6
22.3
29 |
4.3
6.19
8.1 |
11
10
8.4 |
65
67
68 |
2900 |
1.1 |
2.5 |
40 |
|
ISGB65-20 |
17.5
25
32.5 |
4.86
6.94
9.03 |
22
20
18 |
60
68
67 |
2900 |
3.0 |
2.5 |
60 |
|
ISGB65-20A |
15.6
22.3
29 |
4.33
6.19
8.1 |
17.5
16
14.4 |
58
66
65 |
2900 |
2.2 |
2.5 |
50 |
|
ISGB65-32 |
17.5
25
32.5 |
4.86
6.94
9.03 |
34.4
32
27.5 |
54
63
60 |
2900 |
4.0 |
2.5 |
75 |
|
ISGB65-32A |
16.4
23.4
30.1 |
4.56
6.5
8.44 |
30
28
24.5 |
54
62
59 |
2900 |
4.0 |
2.5 |
75 |
|
ISGB65-32B |
15
21.6
28 |
4.17
6.0
7.78 |
26
24
21 |
51
61
60 |
2900 |
3.0 |
2.5 |
65 |
|
ISGB65-50 |
17.5
25
32.5 |
4.86
6.94
9.03 |
52.7
50
45.5 |
49
58
59 |
2900 |
7.5 |
2.5 |
110 |
|
ISGB65-50A |
16.4
23.5
30.5 |
4.56
6.53
8.47 |
46.4
44
40 |
48
57
58 |
2900 |
7.5 |
2.5 |
110 |
|
ISGB65-50B |
15.2
21.8
28.3 |
4.22
6.06
7.86 |
40.5
38
34 |
55 |
2900 |
5.5 |
2.5 |
100 |
|
ISGB65-80 |
17.5
25
32.5 |
4.86
6.94
9.03 |
82
80
76.5 |
39
50
52 |
2900 |
15.0 |
2.5 |
185 |
|
ISGB65-80A |
16.4
23.4
30.5 |
4.56
6.5
8.47 |
71.5
70
67 |
39
50
52 |
2900 |
11.0 |
2.5 |
170 |
|
ISGB65-80B |
15
21.6
28 |
4.17
6.0
7.78 |
61
60
58 |
38
49
54 |
2900 |
11.0 |
2.5 |
170 |
|
ISGB65-125 |
17.5
25
32.5 |
4.86
6.94
9.03 |
127
125
122 |
32
40
44 |
2900 |
30.0 |
2.5 |
320 |
|
ISGB65-125A |
16.6
23.7
31 |
4.61
6.58
8.6 |
115
113
110 |
32
40
44 |
2900 |
22.0 |
2.5 |
260 |
|
ISGB65-125B |
15.7
22.5
29.2 |
4.36
6.25
8.0 |
103
101
98 |
39 |
2900 |
18.5 |
2.5 |
225 |
|
ISGB65-125C |
14.4
20.6
26.8 |
4.0
5.72
7.44 |
86
85
83 |
38 |
2900 |
15.0 |
2.5 |
210 |
|
ISGB65-12.5(I) |
35
50
65 |
9.72
13.9
18.1 |
13.8
12.5
10 |
67
73
70 |
2900 |
3.0 |
3.0 |
65 |
|
ISGB65-12.5(I)A |
31.3
44.7
58 |
8.7
12.4
16.1 |
11
10
8 |
66
72
69 |
2900 |
2.2 |
3.0 |
55 |
|
ISGB65-20(I) |
35
50
65 |
9.72
13.9
18.1 |
22
20
17 |
67
72.5
70 |
2900 |
5.5 |
3.0 |
100 |
|
ISGB65-20(I)A |
31.3
45
58 |
8.7
12.5
16.1 |
17.5
16
13.6 |
60
71
69 |
2900 |
4.0 |
3.0 |
80 |
|
ISGB65-32(I) |
35
50
65 |
9.72
13.9
18.1 |
35
32
28 |
63
71
70 |
2900 |
7.5 |
3.0 |
105 |
|
ISGB65-32(I)A |
32.7
46.7
61 |
9.1
13.0
16.9 |
30.6
28
25 |
62
70
69 |
2900 |
7.5 |
3.0 |
105 |
|
ISGB65-32(I)B |
30.0
43.3
56.3 |
8.4
12.0
15.6 |
26
24
21 |
69 |
2900 |
5.5 |
3.0 |
95 |
|
ISGB65-50(I) |
35
50
65 |
9.72
13.9
18.1 |
53.5
50
46 |
55
67
68 |
2900 |
15.0 |
3.0 |
180 |
|
ISGB65-50(I)A |
32.8
47
61 |
9.1
13.1
16.9 |
47
44
40 |
54
66
67 |
2900 |
11.0 |
3.0 |
165 |
|
ISGB65-50(I)B |
30.5
43.5
56.6 |
8.5
12.1
15.7 |
40.6
38
33.4 |
65 |
2900 |
7.5 |
3.0 |
115 |
|
ISGB65-80(I) |
35
50
65 |
9.7
13.9
18.1 |
83
80
72 |
52
59
60 |
2900 |
22.0 |
3.0 |
235 |
|
ISGB65-80(I)A |
32.5
46.7
61 |
9.0
13.0
16.9 |
73
70
63 |
52
59
60 |
2900 |
18.5 |
3.0 |
205 |
|
ISGB65-80(I)B |
30
43.3
56 |
8.3
12.0
15.6 |
63
60
54 |
58 |
2900 |
15.0 |
3.0 |
180 |
|
ISGB65-125(I) |
35
50
65 |
9.72
13.9
18.1 |
128
125
121 |
44
54
57 |
2900 |
37.0 |
3.0 |
350 |
|
ISGB65-125(I)A |
32.5
46.5
60.5 |
9.0
12.9
16.8 |
116
113
110 |
43
54
57 |
2900 |
30.0 |
3.0 |
335 |
|
ISGB65-125(I)B |
31
44.5
58 |
8.6
12.4
16.1 |
103
101
97 |
40
53
56 |
2900 |
30.0 |
3.0 |
335 |
|
ISGB65-125(I)C |
29
41
53.6 |
8.1
11.4
14.9 |
87
85
83 |
39
51
55 |
2900 |
22.0 |
3.0 |
270 |
|
ISGB80-12.5 |
35
50
65 |
9.72
13.9
18.1 |
13.8
12.5
10 |
67
73
70 |
2900 |
3.0 |
3.0 |
65 |
|
ISGB80-12.5A |
31.3
44.7
58 |
8.7
12.5
16.1 | ,
11
10
8
|
66
72
69 |
2900 |
2.2 |
3.0 |
60 |
|
ISGB80-20 |
35
50
65 |
9.72
13.9
18.1 |
22
20
17 |
67
72.5
70 |
2900 |
5.5 |
3.0 |
100 |
|
ISGB80-20A |
31.3
45
58 |
8.7
12.5
16.1 |
17.5
16
13.6 |
66
71
69 |
2900 |
4.0 |
3.0 |
80 |
|
ISGB80-32 |
35
50
65 |
9.72
13.9
18.1 |
35
32
28 |
63
71
70 |
2900 |
7.5 |
3.0 |
105 |
|
ISGB80-32A |
32.7
46.7
61 |
9.1
13.0
16.9 |
30.6
28
25 |
62
70
69 |
2900 |
7.5 |
3.0 |
105 |
|
ISGB80-32B |
30.3
43.3
56.3 |
8.4
12.0
15.6 |
27
24
20 |
69 |
2900 |
5.5 |
3.0 |
100 |
|
ISGB80-50 |
35
50
65 |
9.72
13.9
18.1 |
53.3
50
46 |
55
67
68 |
2900 |
15.0 |
3.0 |
175 |
|
ISGB80-50A |
328
47
61 |
9.1
13.1
16.9 |
47
44
40 |
54
66
67 |
2900 |
11.0 |
3.0 |
170 |
|
ISGB80-50B |
30.5
43.5
56.6 |
8.5
12.1
15.7 |
40.6
38
33.4 |
53
65
67 |
2900 |
7.5 |
3.0 |
120 |
|
ISGB80-80 |
35
50
65 |
9.72
13.9
18.1 |
83
80
72 |
52
59
60 |
2900 |
22.0 |
3.0 |
240 |
|
ISGB80-80A |
32.5
46.7
61 |
9.0
13.0
16.9 |
73
70
64 |
52
59
60 |
2900 |
18.5 |
3.0 |
210 |
|
ISGB80-80B |
30
43.3
56 |
8.3
12.0
15.6 |
63
60
54 |
58 |
2900 |
15.0 |
3.0 |
190 |
|
ISGB80-125 |
35
50
65 |
9.72
13.9
18.1 |
128
125
122 |
43
54
57 |
2900 |
37.0 |
3.0 |
360 |
|
ISGB80-125A |
32.5
46.5
60.5 |
9
12.9
16.8 |
116
113
110 |
42
53
56 |
2900 |
30.0 |
3.0 |
345 |
|
ISGB80-125B |
31
44.5
58 |
8.6
12.4
16.1 |
103
101
97 |
53 |
2900 |
30.0 |
3.0 |
340 |
|
ISGB80-125C |
29
41
53.6 |
8.1
11.4
14.9 |
98
85
83 |
51 |
2900 |
22.0 |
3.0 |
275 |
|
ISGB80-12.5(I) |
70
100
130 |
194
27.8
36.1 |
13.6
12.5
11 |
66
76
75 |
2900 |
5.5 |
4.5 |
110 |
|
ISGB80-12.5(I)A |
62.6
89
116 |
17.4
24.7
32.2 |
11
10
8.8 |
64
74
74 |
2900 |
4.0 |
4.5 |
85 |
|
ISGB80-20(I) |
70
100
130 |
19.4
27.8
36.1 |
23.5
20
14 |
70
76
72 |
2900 |
11.0 |
4.5 |
165 |
|
ISGB80-20(I)A |
62.6
89
116 |
17.4
24.7
32.2 |
19
16
11 |
68
74
65 |
2900 |
7.5 |
4.5 |
130 |
|
ISGB80-32(I) |
70
100
130 |
19.4
27.8
36.1 |
36.5
32
24 |
70
76
65 |
2900 |
15.0 |
4.5 |
185 |
|
ISGB80-32(I)A |
65.4
93.5
131.6 |
18.2
26.0
33.8 |
32
28
21 |
68
74
67 |
2900 |
11.0 |
4.5 |
175 |
|
ISGB80-32(I)B |
60.6
86.6
112.5 |
16.8
24.1
31.3 |
27
24
18 |
72 |
2900 |
11.0 |
4.5 |
175 |
|
ISGB80-50(I) |
70
100
130 |
19.4
27.8
36.1 |
54
50
42 |
65
74
73 |
2900 |
22.0 |
4.0 |
250 |
|
ISGB80-50(I)A |
65.4
93.5
121.6 |
18.2
26.4
33.8 |
47.5
44
39 |
64
73
72 |
2900 |
18.5 |
4.0 |
220 |
|
ISGB80-50(I)B |
61
87
113 |
16.9
24.2
31.4 |
41
38
32 |
71 |
2900 |
15.0 |
4.0 |
200 |
|
ISGB80-80(I) |
70
100
130 |
19.4
27.8
36.1 |
87
80
68 |
62
69
68 |
2900 |
37.0 |
4.0 |
330 |
|
ISGB80-80(I)A |
65.4
93.5
121.6 |
18.2
26.0
33.8 |
76
70
59.5 |
61
68
67 |
2900 |
30.0 |
4.0 |
315 |
|
ISGB80-80(I)B |
61
87
113 |
16.9
24.2
31.4 |
65
60
51 |
66 |
2900 |
30.0 |
4.0 |
315 |
|
ISGB80-125(I) |
70
100
130 |
19.4
27.8
36.1 |
132
125
114 |
55
66
67 |
2900 |
75.0 |
4.0 |
675 |
|
ISGB80-125(I)A |
66.5
95
123.6 |
18.5
26.4
34.3 |
119
113
104 |
55
66
67 |
2900 |
55.0 |
4.0 |
535 |
|
ISGB80-125(I)B |
63
90
117 |
17.5
25
32.5 |
106.6
101
92 |
65 |
2900 |
45.0 |
4.0 |
425 |
|
ISGB80-125(I)C |
58
82
107 |
16.1
22.8
29.7 |
90
85
76 |
63 |
2900 |
37.0 |
4.0 |
370 |
|
ISGB100-12.5 |
70
100
130 |
19.4
27.8
36.1 |
13.6
12.5
11 |
66
76
75 |
2900 |
5.5 |
4.5 |
115 |
|
ISGB100-12.5A |
62.6
89
116 |
17.4
24.7
32.2 |
11
10
8.8 |
64
74
74 |
2900 |
4.0 |
4.5 |
90 |
|
ISGB100-20 |
70
100
130 |
19.4
27.8
36.1 |
23.5
20
14 |
70
76
65 |
2900 |
11.0 |
4.5 |
170 |
|
ISGB100-20A |
62.6
89
116 |
17.4
24.7
32.2 |
19
16
11 |
68
74
63 |
2900 |
7.5 |
4.5 |
120 |
|
ISGB100-32 |
70
100
130 |
19.4
27.8
36.1 |
36.5
32
24 |
70
76
65 |
2900 |
15.0 |
4.5 |
200 |
|
ISGB100-32A |
65.4
93.5
121.6 |
18.2
26.0
33.8 |
32
28
21 |
68
74
67 |
2900 |
11.0 |
4.5 |
185 |
|
ISGB100-32B |
60.6
86.6
112.5 |
16.8
24.1
31.3 |
27
24
18 |
72 |
2900 |
11.0 |
4.5 |
180 |
|
ISGB100-50 |
70
100
130 |
19.4
27.8
36.1 |
54
50
42 |
65
74
73 |
2900 |
22.0 |
4.0 |
245 |
|
ISGB100-50A |
65.4
93.5
121.6 |
18.2
26.0
33.8 |
47.5
44
37 |
64
73
72 |
2900 |
18.5 |
4.0 |
215 |
|
ISGB100-50B |
61
87
113 |
16.9
24.2
31.4 |
41
38
34 |
71 |
2900 |
15.0 |
4.0 |
195 |
|
ISGB100-80 |
70
100
130 |
19.4
27.8
36.1 |
87
80
68 |
62
69
68 |
2900 |
37.0 |
4.0 |
345 |
|
ISGB100-80A |
65.4
93.5
121.6 |
18.2
26.0
33.8 |
76
70
59.5 |
61
68
67 |
2900 |
30.0 |
4.0 |
330 |
|
ISGB100-80B |
61
87
113 |
16.9
24.2
31.4 |
65
60
51 |
67 |
2900 |
30.0 |
4.0 |
330 |
|
ISGB100-125 |
70
100
130 |
19.4
27.8
36.1 |
132
125
114 |
55
66
67 |
2900 |
75.0 |
4.0 |
685 |
|
ISGB100-125A |
66.5
95
123.6 |
18.5
26.4
34.3 |
119
113
104 |
55
66
67 |
2900 |
55.0 |
4.0 |
550 |
|
ISGB100-125B |
63
90
117 |
17.5
25.0
32.5 |
106.6
101
92 |
65 |
2900 |
45.0 |
4.0 |
440 |
|
ISGB100-125C |
58
82
107 |
16.1
22.8
29.7 |
90
85
76 |
63 |
2900 |
37.0 |
4.0 |
385 |
|
ISGB125-12.5 |
96
160
192 |
26.7
44.4
53.3 |
13
12.5
12 |
78
82
84 |
2900 |
11.0 |
4.0 |
180 |
|
ISGB125-12.5A |
86
143
172 |
23.9
39.7
47.8 |
10.4
10
9.6 |
77 |
2900 |
7.5 |
4.0 |
130 |
|
ISGB125-20 |
96
160
192 |
26.7
44.4
53.3 |
22.6
20
17 |
76
80
78 |
2900 |
15.0 |
4.0 |
225 |
|
ISGB125-20A |
86
143
172 |
23.9
39.7
47.8 |
18
16
13.6 |
73
77
75 |
2900 |
11.0 |
4.0 |
210 |
|
ISGB125-32 |
96
160
192 |
26.7
44.4
53.3 |
36
32
28 |
78 |
2900 |
22.0 |
4.0 |
265 |
|
ISGB125-32A |
90
150
180 |
25
41.7
50 |
31.5
28
24.5 |
76 |
2900 |
18.5 |
4.0 |
230 |
|
ISGB125-32B |
83
138
166 |
21.7
38.3
46.1 |
27
24
21 |
73 |
2900 |
15.0 |
4.0 |
215 |
|
ISGB125-50 |
96
160
192 |
26.7
44.4
53.3 |
55
50
46 |
69
79
78 |
2900 |
37.0 |
5.0 |
400 |
|
ISGB125-50A |
90
150
180 |
25
41.7
50 |
48.4
44
40.5 |
64
74
73 |
2900 |
30.0 |
5.0 |
380 |
|
ISGB125-50B |
83
138
166 |
21.8
38.3
46.1 |
41.3
37.5
34.5 |
72 |
2900 |
22.0 |
5.0 |
325 |
|
ISGB125-80 |
96
160
192 |
26.7
44.4
53.3 |
87
80
73 |
65
77
74 |
2900 |
55.0 |
4.5 |
580 |
|
ISGB125-80A |
90
150
180 |
25
41.7
50 |
76
70
64 |
74 |
2900 |
45.0 |
4.5 |
495 |
|
ISGB125-80B |
83
138
166 |
21.7
38.3
46.1 |
65
60
55 |
73 |
2900 |
37.0 |
4.5 |
430 |
|
ISGB125-125 |
96
160
192 |
26.7
44.7
53.3 |
133
125
119 |
70
72
68 |
2900 |
90.0 |
4.5 |
800 |
|
ISGB125-125A |
90
150
180 |
25
41.7
50 |
117
110
104.6 |
65
70
71 |
2900 |
75.0 |
4.5 |
715 |
|
ISGB125-125B |
86
143
172 |
23.8
39.7
47.8 |
106.4
100
95.2 |
65
69
66 |
2900 |
75.0 |
4.5 |
710 |
|
ISGB125-125C |
80.5
134
161 |
22.4
37.2
44.7 |
96
88
86 |
68 |
2900 |
55.0 |
4.5 |
590 |
|
ISGB125-32(I) |
120
200
240 |
33.3
55.6
66.7 |
35
32
28 |
64
76
75 |
2900 |
30.0 |
4.5 |
325 |
|
ISGB125-32(I)A |
112
187
224 |
31.1
51.9
62.2 |
31.5
28
24 |
63
75
75 |
2900 |
22.0 |
4.5 |
295 |
|
ISGB125-50(I) |
120
200
240 |
33.3
55.6
66.7 |
55
50
46 |
63
74
73 |
2900 |
45.0 |
4.5 |
430 |
|
ISGB125-50(I)A |
112
187
224 |
31.1
51.9
62.2 |
48.4
44
40 |
62
73
73 |
2900 |
37.0 |
4.5 |
420 |
|
ISGB125-50(I)B |
104
173
208 |
28.9
48.1
57.8 |
41
37
34.5 |
61
72
73 |
2900 |
30.0 |
4.5 |
410 |
|
ISGB125-80(I) |
120
200
240 |
33.3
55.6
66.7 |
87
80
72 |
65
76
74 |
2900 |
75.0 |
4.5 |
685 |
|
ISGB125-80(I)A |
112
187
224 |
31.1
51.9
62.2 |
76
70
63 |
64
75
73 |
2900 |
55.0 |
4.5 |
545 |
|
ISGB125-80(I)B |
104
173
208 |
28.9
48.1
57.8 |
65
60
54 |
63
74
72 |
2900 |
45.0 |
4.5 |
460 |
|
ISGB125-125(I) |
120
200
240 |
33.3
55.6
66.7 |
133
125
120 |
58
73
75 |
2900 |
110.0 |
4.5 |
950 |
|
ISGB125-125(I)A |
112
187
224 |
31.1
51.9
62.2 |
116
110
105 |
57
72
74 |
2900 |
90.0 |
4.5 |
785 |
|
ISGB125-125(I)B |
104
173
208 |
28.9
48.1
57.8 |
100
95
91 |
55
70
72 |
2900 |
75.0 |
4.5 |
750 |
|
ISGB150-12.5 |
112
160
208 |
31.1
44.4
57.8 |
13.5
12.5
10 |
60
72
66 |
1450 |
11.0 |
3.5 |
200 |
|
ISGB150-12.5A |
98
140
182 |
27.2
39
50.6 |
11
10
8.5 |
68
70
71 |
1450 |
7.5 |
3.5 |
180 |
|
ISGB150-20 |
112
160
208 |
31.1
44.4
57.8 |
23.5
20
14 |
66
71
66 |
1450 |
15.0 |
3.5 |
250 |
|
ISGB150-20A |
98
140
182 |
27.2
39
50.6 |
19
17
11 |
65
70
66 |
1450 |
11.0 |
3.5 |
230 |
|
ISGB150-20B |
84
120
156 |
23.3
33.3
43.3 |
15.5
14
10 |
62
70
68 |
1450 |
7.5 |
3.5 |
200 |
|
ISGB150-32 |
112
160
208 |
31.1
44.4
57.8 |
33
32
28 |
62
70
80 |
1450 |
22.0 |
3.5 |
280 |
|
ISGB150-32A |
98
140
182 |
27.2
39
50.6 |
29
28
26.6 |
600
71
80 |
1450 |
18.5 |
3.5 |
270 |
|
ISGB150-32B |
84
120
156 |
23.3
33.3
43.3 |
25
24
22.5 |
66
71
70 |
1450 |
15.0 |
3.5 |
250 |
|
ISGB150-50 |
112
160
208 |
31.1
44.4
57.8 |
52
50
42 |
60
72
80 |
1450 |
37.0 |
3.5 |
515 |
|
ISGB150-50A |
98
140
182 |
27.2
39
50.5 |
46
44
39 |
60
70
80 |
1450 |
30.0 |
3.5 |
500 |
|
ISGB150-50B |
84
120
156 |
23.3
33.3
43.3 |
41
38
30 |
66
70
73 |
1450 |
22.0 |
3.5 |
480 |
|
ISGB150-80 |
112
160
208 |
31.1
44.4
57.8 |
83
80
75 |
67
72
69 |
1450 |
55.0 |
3.5 |
900 |
|
ISGB150-80A |
98
140
182 |
27.2
39
50.6 |
73
70
66 |
65
70
67 |
1450 |
45.0 |
3.5 |
765 |
|
ISGB150-80B |
84
120
150 |
23.3
33.3
43.3 |
65
60
56 |
62
67
65 |
1450 |
37.0 |
3.5 |
660 |
|
ISGB150-80 |
120
200
240 |
33.3
55.6
66.7 |
87
80
72 |
65
76
74 |
2900 |
75.0 |
4.2 |
710 |
|
ISGB150-80A |
112
187
224 |
31.1
51.9
62.2 |
76
70
63 |
64
75
73 |
2900 |
55.0 |
4.2 |
560 |
|
ISGB150-80B |
104
173
208 |
28.9
48.1
57.8 |
65
60
54 |
63
74
72 |
2900 |
45.0 |
4.2 |
465 |
|
ISGB150-125 |
120
200
240 |
33.3
55.6
66.7 |
133
125
120 |
58
73
75 |
2900 |
110.0 |
4.5 |
980 |
|
ISGB150-125A |
112
187
224 |
31.1
51.9
62.2 |
116
110
105 |
57
72
74 |
2900 |
90.0 |
4.5 |
805 |
|
ISGB150-125B |
104
173
208 |
28.9
48.1
57.8 |
100
95
91 |
55
70
72 |
2900 |
75.0 |
4.5 |
725 |
|
ISGB150-12.5(I) |
140
200
260 |
38.9
55.6
72.2 |
13.8
12.5
10.6 |
68
78
78 |
1450 |
15.0 |
3.0 |
265 |
|
ISGB150-12.5(I)A |
125
179
233 |
34.7
49.7
64.6 |
11
10
8.5 |
66
76
76 |
1450 |
11.0 |
3.0 |
245 |
|
ISGB150-20(I) |
140
200
260 |
38.9
55.6
72.2 |
21.8
20
17 |
73
79
77 |
1450 |
18.5 |
3.0 |
300 |
|
ISGB150-20(I)A |
129
184
240 |
35.8
51.2
66.7 |
18.5
17
14.4 |
72
78
76 |
1450 |
15.0
|
3.0 |
265 |
|
ISGB150-20(I)B |
117
167
217.5 |
32.5
46.4
60.4 |
15.2
14
1, 2 | ,
71
76
74 |
1450 |
11.0 |
3.0 |
245 |
|
ISGB150-32(I) |
140
200
260 |
38.9
55.6
72.2 |
33.8
32
28 |
70
78
73 |
1450 |
30.0 |
3.5 |
410 |
|
ISGB150-32(I)A |
131
187
243 |
36.4
51.9
67.5 |
29.5
28
24.5 |
9
77
77 |
1450 |
22.0 |
3.5 |
335 |
|
ISGB150-32(I)B |
121
173
225 |
33.6
48.1
62.5 |
25
24
21 |
69
76
74 |
1450 |
18.5 |
3.5 |
310 |
|
ISGB150-50(I) |
140
200
260 |
38.9
55.6
72.2 |
53
50
44 |
68
75
71 |
1450 |
45.0 |
3.5 |
500 |
|
ISGB150-50(I)A |
131
187
243 |
36.4
51.9
67.5 |
46.6
44
38.3 |
67
74
70 |
1450 |
37.0 |
3.5 |
460 |
|
ISGB150-50(I)B |
122
174
226.5 |
33.9
48.3
62.9 |
40.5
38
33 |
66
73
69 |
1450 |
30.0 |
3.5 |
435 |
|
ISGB150-50(I)C |
112
160
208 |
31.1
44.4
57.8 |
34
32
28 |
71 |
1450 |
22.0 |
3.5 |
370 |
|
ISGB150-80(I) |
140
200
260 |
38.9
55.6
72.2 |
84
80
75 |
62
69
67 |
1450 |
75.0 |
3.5 |
1050 |
|
ISGB150-80(I)A |
131
187
243 |
36.4
51.9
67.5 |
73
70.5
66 |
61
68
66 |
1450 |
75.0 |
3.5 |
900 |
|
ISGB150-80(I)B |
122
174
226.5 |
33.9
48.3
62.9 |
65
62
58 |
60
66
64 |
1450 |
55.0 |
3.5 |
780 |
|
ISGB150-80(I)C |
112
160
208 |
31.1
44.4
57.8 |
56.5
54.5
51 |
58
64
62 |
1450 |
45.0 |
3.5 |
650 |
|
ISGB200-12.5 |
140
200
260 |
38.9
55.6
72.2 |
13.8
12.5
10.8 |
68
78
78 |
1450 |
15.0 |
3.0 |
270 |
|
ISGB200-12.5A |
125
179
233 |
34.7
49.7
64.6 |
11
10
8.5 |
66
76
76 |
1450 |
11.0 |
3.0 |
245 |
|
ISGB200-20 |
140
200
260 |
38.9
55.6
72.2 |
21.8
20
17 |
73
79
77 |
1450 |
18.5 |
3.0 |
310 |
|
ISGB200-20A |
129
184
240 |
35.8
51.2
66.7 |
18.5
17
14.4 |
72
78
76 |
1450 |
15.0 |
3.0 |
365 |
|
ISGB200-20B |
117
167
217.5 |
32.5
46.4
60.4 |
15.2
14
12 |
71
76
74 |
1450 |
11.0 |
3.0 |
245 |
|
ISGB200-32 |
140
200
260 |
38.9
55.6
72.2 |
33.8
32
28 |
70
78
78 |
1450 |
30.0 |
3.5 |
420 |
|
ISGB200-32A |
131
187
243 |
36.4
51.9
67.5 |
29.5
27
24.5 |
69
77
78 |
1450 |
22.0 |
3.5 |
350 |
|
ISGB200-32B |
121
173
225 |
33.6
48.1
62.5 |
25
24
21 |
69
76
73 |
1450 |
18.5 |
3.5 |
320 |
|
ISGB200-50 |
140
200
260 |
38.9
55.6
72.2 |
53
50
44 |
68
75
71 |
1450 |
45.0 |
3.5 |
495 |
|
ISGB200-50A |
131
187
243 |
364
51.9
67.5 |
46.6
44
38.3 |
67
74
70 |
1450 |
37.0 |
3.5 |
460 |
|
ISGB200-50B |
122
174
226.5 |
33.9
48.3
62.9 |
40.5
38
33 |
73 |
1450 |
30.0 |
3.5 |
445 |
|
ISGB200-50C |
112
160
208 |
31.1
44.4
57.8 |
34
32
28 |
71 |
1450 |
22.0 |
3.5 |
380 |
|
ISGB200-12.5(I) |
280
400
520 |
77.8
111.1
144 |
13.4
12.5
10.5 |
70
80
79 |
1450 |
22.0 |
4.0 |
385 |
|
ISGB200-12.5(I)A |
250
358
465 |
69.4
99.4
129.2 |
10.7
10
8.5 |
68
78
77 |
1450 |
18.5 |
4.0 |
470 |
|
ISGB200-20(I) |
280
400
520 |
77.8
111.1
144 |
22.2
20
14 |
75
80
72 |
1450 |
30.0 |
4.0 |
480 |
|
ISGB200-20(I)A |
250
358
465 |
69.4
99.4
129.2 |
19
17
13 |
73
78
70 |
1450 |
22.0 |
4.0 |
430 |
|
ISGB200-20(I)B |
226
322
419 |
62.8
89.4
116.4 |
15.5
14
10 |
70
75
73 |
1450 |
18.5 |
4.0 |
390 |
|
ISGB200-32(I) |
280
400
520 |
77.8
111.1
144 |
36
32
26 |
73
80
75 |
1450 |
55.0 |
4.0 |
680 |
|
ISGB200-32(I)A |
262
374
486 |
72.8
103.9
135 |
31.5
28
23 |
72
79
74 |
1450 |
45.0 |
4.0 |
560 |
|
ISGB200-32(I)B |
242
346
450 |
67.2
96.1
125 |
27.5
24
18.5 |
78 |
1450 |
37.0 |
4.0 |
535 |
|
ISGB200-50(I) |
280
400
520 |
77.8
111.1
144 |
54.5
50
39 |
75
81
77 |
1450 |
75.0 |
4.0 |
835 |
|
ISGB200-50(I)A |
262
352
486 |
72.8
103.9
135 |
48
44
35 |
73
80
75 |
1450 |
75.0 |
4.0 |
835 |
|
ISGB200-50(I)B |
242
346
450 |
67.2
96.1
125 |
42
38
29.6 |
72
78
74 |
1450 |
55.0 |
4.0 |
700 |
|
ISGB200-50(I)C |
224
320
416 |
62.2
88.9
115.6 |
34.9
32
25 |
70
76
72 |
1450 |
45.0 |
4.0 |
585 |
|
ISGB200-80(I) |
280
400
520 |
77.8
111.1
144 |
87
80
72 |
73
80
77 |
1450 |
132.0 |
5.0 |
1565 |
|
ISGB200-80(I)A |
262
374
486 |
72.8
103.9
135 |
76
70
63 |
72
79
76 |
1450 |
110.0 |
5.0 |
1415 |
|
ISGB200-80(I)B |
242
346
450 |
67.2
96.1
125 |
65
60
54 |
71
78
75 |
1450 |
90.0 |
5.0 |
1290 |
|
ISGB200-80(I)C |
224
320
416 |
62.2
88.9
115.6 |
62
56
48 |
70
76
74 |
1450 |
75.0 |
4.0 |
1050 |
|
ISGB200-125(I) |
280
400
520 |
77.8
111.1
144.4 |
135
125
104 |
79 |
1450 |
200.0 |
4.0 |
1680 |
|
ISGB200-125(I)A |
256
352
448 |
71.1
97.8
124 |
120
112
88 |
78 |
1450 |
200.0 |
4.0 |
1680 |
|
ISGB200-125(I)B |
224
320
416 |
62.2
88.9
115.6 |
104
96
72 |
77 |
1450 |
132.0 |
4.0 |
1450 |
|
ISGB250-12.5 |
400
650
670 |
111.1
152.8
186.1 |
13.5
12.5
11 |
78
82
78 |
1450 |
30.0 |
4.0 |
550 |
|
ISGB250-12.5A |
368
506
607 |
102.2
140.6
168.7 |
11.6
10.8
9.5 |
74
80
76 |
1450 |
22.0 |
5.0 |
500 |
|
ISGB250-20 |
400
550
670 |
111.1
152.8
186.1 |
22.5
20
16 |
78
82
84 |
1450 |
45.0 |
5.0 |
620 |
|
ISGB250-20A |
368
506
607 |
102.2
140.6
168.7 |
19.5
17
14.6 |
80 |
1450 |
37.0 |
5.0 |
550 |
|
ISGB250-32 |
400
550
670 |
111.1
152.8
186.1 |
36
32
26 |
77
80
81 |
1450 |
75.0 |
5.0 |
915 |
|
ISGB250-32A |
368
506
607 |
102.2
140.6
168.7 |
31.5
28
23 |
78 |
1450 |
55.0 |
5.0 |
840 |
|
ISGB250-32B |
339
466
559 |
94
129.3
155.2 |
26.5
25
20 |
76 |
1450 |
45.0 |
5.0 |
695 |
|
ISGB250-50 |
400
550
670 |
111.1
152.8
186.1 |
54.5
50
39 |
69
76
72 |
1450 |
110.0 |
5.0 |
1557 |
|
ISGB250-50A |
368
506
607 |
102.2
140.6
168.7 |
48
44
35.5 |
68
74
70 |
1450 |
90.0 |
5.0 |
1055 |
|
ISGB250-50B |
339
466
559 |
94
129.3
155.2 |
43
39.5
32.5 |
66
72
68 |
1450 |
75.0 |
5.0 |
910 |
|
ISGB250-50C |
311
428
514 |
86.5
119
142.8 |
38
35
28 |
63
69
65 |
1450 |
75.0 |
5.0 |
910 |
|
ISGB250-70 |
400
520
670 |
111.1
152.8
186.1 |
76
70
63 |
75
76
78 |
1450 |
160.0 |
5.0 |
1545 |
|
ISGB250-70A |
368
506
607 |
102.2
140.6
168.7 |
65
60
54 |
74
75
77 |
1450 |
132.0 |
5.0 |
1355 |
|
ISGB250-70B |
339
466
559 |
94
129.3
155.2 |
55
50
42 |
73
74
74 |
1450 |
90.0 |
5.0 |
1055 |
|
ISGB250-70C |
311
428
514 |
86.5
119
142.8 |
49.5
44
38 |
71
72
73 |
1450 |
75.0 |
5.0 |
965 |
|
ISGB250-80 |
500
550
670 |
111.1
152.8
186.1 |
84
80
70 |
73
77
75 |
1450 |
200.0 |
5.0 |
1750 |
|
ISGB250-80A |
368
506
670 |
102.2
140.6
168.7 |
75
74
62.5 |
72
75
74 |
1450 |
160.0 |
5.0 |
1560 |
|
ISGB250-80B |
339
466
559 |
94
129.3
155.2 |
66.5
63.5
55.5 |
70
73
72 |
1450 |
132.0 |
5.0 |
1420 |
|
ISGB250-80C |
311
428
514 |
86.5
119
142.8 |
58
55
48.5 |
69
71
70 |
1450 |
110.0 |
5.0 |
1350 |
|
ISGB300-12.5 |
500
720
860 |
138.9
200
238.9 |
13.5
12.5
10.5 |
78
83
78 |
1450 |
37.0 |
5.0 |
985 |
|
ISGB300-12.5A |
460
662
791 |
127.8
184
219.8 |
12
11
9.3 |
77
82
77 |
1450 |
30.0 |
5.0 |
925 |
|
ISGB3300-18 |
480
720
900 |
133.3
200
250 |
20
18
15.5 |
77
81
74 |
1450 |
55.0 |
5.0 |
1135 |
|
ISGB300-18A |
438
607
821 |
121.7
182.5
228.1 |
16.5
15
13 |
75
79
72 |
1450 |
45.0 |
5.0 |
1040 |
|
ISGB300-18B |
400
600
750 |
111.1
167.0
208.3 |
14
12.5
11 |
73
77
70 |
1450 |
37.0 |
5.0 |
900 |
|
ISGB300-20 |
500
720
900 |
138.9
200
250 |
23
20
16 |
80
83
84 |
1450 |
55.0 |
5.0 |
900 |
|
ISGB300-20A |
460
662
791 |
127.8
184
219.8 |
20.2
17.5
14.2 |
81 |
1450 |
45.0 |
5.0 |
785 |
|
ISGB300-28 |
480
720
900 |
133.3
200
250 |
31
28
25 |
77
81
77 |
1450 |
75.0 |
5.0 |
1350 |
|
ISGB300-28A |
444
666
833 |
123.3
185
231.4 |
26.5
24
21.5 |
76
80
76 |
1450 |
75.0 |
5.0 |
1350 |
|
ISGB300-28B |
415
623
779 |
115.3
173.1
216.4 |
23
21
18.5 |
79 |
1450 |
55.0 |
5.0 |
1170 |
|
ISGB300-32 |
500
720
900 |
138.9
200
250 |
36
32
26 |
79
82.5
84 |
1450 |
90.0 |
5.0 |
1350 |
|
ISGB300-32A |
460
662
791 |
127.8
184
219.8 |
30.5
28
23.5 |
74
80
74 |
1450 |
75.0 |
5.0 |
1250 |
|
ISGB300-32B |
423
609
728 |
117.6
169.3
202.2 |
25.5
23.5
20 |
72
78
73 |
1450 |
55.0 |
5.0 |
1080 |
|
ISGB300-44 |
480
720
900 |
133.3
200
250 |
48
44
34 |
76
84
82 |
1450 |
132.0 |
5.0 |
1900 |
|
ISGB300-44A |
444
666
833 |
123.3
185
231.4 |
41.4
38
30 |
80 |
1450 |
110.0 |
5.0 |
1700 |
|
ISGB300-44B |
409
614
767 |
113.6
170.6
213.1 |
35
32
25 |
78 |
1450 |
90.0 |
5.0 |
1550 |
|
ISGB300-50 |
500
720
900 |
138.9
200
250 |
54.5
50
42 |
75
80
78 |
1450 |
132.0 |
5.5 |
1725 |
|
ISGB300-50A |
460
662
791 |
127.8
184
219.8 |
47
44
36.5 |
74
79
77 |
1450 |
110.0 |
5.5 |
1520 |
|
ISGB300-50B |
423
609
728 |
117.6
169.3
202.2 |
41
38
32 |
72
77
75 |
1450 |
90.0 |
5.5 |
1400 |
|
ISGB300-50C |
389
561
670 |
108.2
155.7
186 |
35.5
33
27.5 |
69
74
72 |
1450 |
75.0 |
5.5 |
1250 |
|
ISGB300-65 |
500
720
900 |
138.9
200
250 |
71
65
58 |
75
81
82 |
1450 |
200.0 |
5.5 |
2150 |
|
ISGB300-65A |
460
662
791 |
127.8
184
219.8 |
60
55
49 |
74
80
81 |
1450 |
160.0 |
5.5 |
1730 |
|
ISGB300-65B |
423
609
728 |
117.6
169.3
202.2 |
49
45
35 |
73
79
80 |
1450 |
110.0 |
5.5 |
1630 |
|
ISGB300-65C |
389
561
670 |
108.2
155.7
186 |
42
38
30 |
72
78
79 |
1450 |
90.0 |
5.5 |
1500 |
|
ISGB300-80 |
500
720
900 |
138.9
200
250 |
84
80
72 |
74
80
75 |
1450 |
250.0 |
5.5 |
2280 |
|
ISGB300-80A |
460
662
791 |
127.8
184
219.8 |
74
80.5
63.5 |
73
79
74 |
1450 |
200.0 |
5.5 |
2150 |
|
ISGB300-80B |
423
609
728 |
117.6
169.3
202.2 |
65
62
56 |
71
77
72 |
1450 |
160.0 |
5.5 |
1980 |
|
ISGB300-80C |
389
561
670 |
108.2
155.7
186 |
57
54.5
49 |
68
75
70 |
1450 |
132.0 |
5.5 |
1850 |
|
ISGB350-12.5 |
718
1080
1345 |
199.4
300
373.6 |
15
12.5
11 |
75
83
81 |
970 |
55.0 |
5.5 |
1200 |
|
ISGB350-12.5A |
663
995
1245 |
184.2
276.4
345.8 |
12
10
8.5 |
72
81
79 |
970 |
45.0 |
5.5 |
1020 |
|
ISGB350-20 |
718
1080
1345 |
199.4
300
373.6 |
23.5
20
18 |
76
82
80 |
970 |
90.0 |
5.5 |
1450 |
|
ISGB350-20A |
663
995
1245 |
184.2
376.4
345.8 |
20
17
15 |
74
80
78 |
970 |
75.0 |
5.5 |
1320 |
|
ISGB350-20B |
620
931
1165 |
172.2
258.6
323.6 |
17.5
15
13 |
71
78
77 |
970 |
55.0 |
5.5 |
115 |
|
ISGB350-32 |
718
1080
1345 |
199.4
300
373.6 |
36.4
32
28.5 |
79
83
78 |
1450 |
132.0 |
5.5 |
2150 |
|
ISGB350-32A |
663
995
1245 |
184.2
276.4
345.6 |
30.5
27
25 |
74
81
76 |
1450 |
110.0 |
5.5 |
2000 |
|
ISGB350-32B |
620
931
1165 |
172.2
258.6
323.6 |
26.5
24
21 |
73
79
75 |
1450 |
90.0 |
5.5 |
1850 |
|
ISGB350-40 |
718
1080
1345 |
199.4
300
373.6 |
44.6
40
34.6 |
82 |
1450 |
160.0 |
5.5 |
1700 |
|
ISGB350-40A |
642
965
120 |
178.3
268.1
334.2 |
35.7
32
27.7 |
80 |
1450 |
132.0 |
5.5 |
1500 |
|
ISGB350-40B |
600
900
1121 |
166.7
250
311.4 |
31.2
28.2
24.6 |
78 |
1450 |
110.0 |
5.5 |
1300 |
|
ISGB350-50 |
718
1080
1345 |
199.4
300
373.6 |
54.7
50
44.2 |
78
83
77 |
1450 |
, ,
200.0 |
5.5 |
2300 |
|
ISGB350-50A |
663
995
1245 |
184.2
276.4
345.8 |
48.3
44
36.8 |
77
81
76 |
1450 |
160.0 |
5.5 |
2100 |
|
ISGB350-50B |
620
931
1165 |
172.2
258.6
323.6 |
42.5
38
32.3 |
79 |
1450 |
132.0 |
5.5 |
1950 |
|
ISGB350-60 |
718
1080
1345 |
199.4
300
373.6 |
64.8
60
55 |
82 |
1450 |
250.0 |
5.5 |
2500 |
|
ISGB350-60A |
663
995
1245 |
184.2
376.4
345.8 |
59.2
54
48 |
80 |
1450 |
200.0 |
5.5 |
2250 |
|
ISGB350-60B |
620
931
1165 |
172.2
258.6
323.6 |
51.3
46.9
41.3 |
78 |
1450 |
160.0 |
5.5 |
2100 |
|
ISGB350-12.5(I) |
1000
1200
1450 |
277.8
333.3
402.8 |
13.5
12.5
10.5 |
76
80
77 |
970 |
55.0 |
6.0 |
1250 |
|
ISGB350-12.5(I)A |
900
1080
1300 |
250
300
361 |
11.5
10.5
9 |
76
80
76 |
970 |
45.0 |
6.0 |
1150 |
|
ISGB350-20(I) |
1000
1200
1450 |
277.8
333.3
402.8 |
23
20
16 |
76
80
76 |
970 |
90.0 |
6.0 |
1580 |
|
ISGB350-20(I)A |
900
1080
1300 |
250
300
361 |
19
17
14 |
73
78
74 |
970 |
75.0 |
6.0 |
1350 |
|
ISGB350-32(I) |
1000
1200
1450 |
277.8
333.3
402.8 |
36
32
26 |
74
78
75 |
1450 |
160.0 |
6.0 |
1870 |
|
ISGB350-32(I)A |
900
1080
1300 |
250
300
361 |
31.5
28
23 |
72
76
73 |
1450 |
132.0 |
6.0 |
1720 |
|
ISGB350-32(I)B |
745
985
1182 |
207
273
328 |
27
25
20 |
71
75
72 |
1450 |
110.0 |
6.0 |
1650 |
|
ISGB350-50(I) |
1000
1200
1450 |
277.8
333.3
402.8 |
55
50
43 |
70
74
72 |
1450 |
250.0 |
6.0 |
2350 |
|
ISGB350-50(I)A |
900
1080
1300 |
250
300
361 |
47.5
44
38 |
68
72
70 |
1450 |
200.0 |
6.0 |
2100 |
|
ISGB350-50(I)B |
745
985
1182 |
207
273
328 |
42
38.5
34 |
60
70
68 |
1450 |
160.0 |
6.0 |
2000 |
